Removing Pressure Sensor (Pt2)

NOTE: Opened refrigerant system for repairs.
  • Risk of moisture getting into the refrigerant system.
  • Risk of contaminating the refrigerant circuit.
  • Risk of saturation and irreparable damage to desiccator.
  • Irreparable damage to the desiccator can damage the compressor and evaporator.

    → After opening the refrigerant circuit, close off the refrigerant lines/connections immediately using the relevant stoppers. To avoid contaminating the refrigerant circuit, the stoppers for the different refrigerants must be stored and used separately.

    → The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

Information

The pressure sensor (PT2) is accessible through the front right wheel housing.

  1. Remove pressure sensor -1-  .

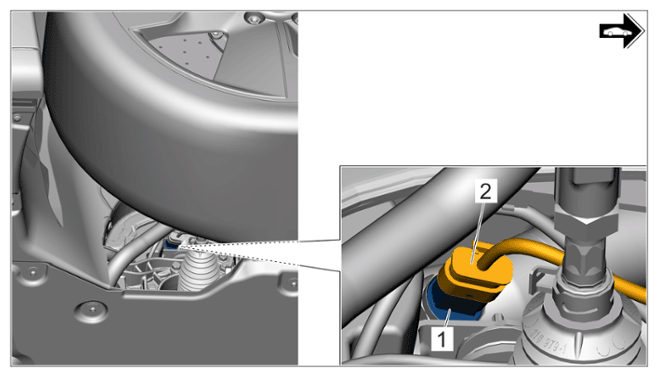

    G15565949Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure sensor (PT2)

    1. 1.1 Release and disconnect electric plug connection -2-  .
    2. 1.2 Loosen and unscrew the pressure sensor -1-  with > T40363 - wrench (a/g. 24)  .
      1. 1.2.1 Close off connection opening using a suitable stopper.
