Installing Pressure Sensor (Pt2)

Information

The pressure sensor (PT2) is accessible through the front right wheel housing.

1. Install pressure sensor -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

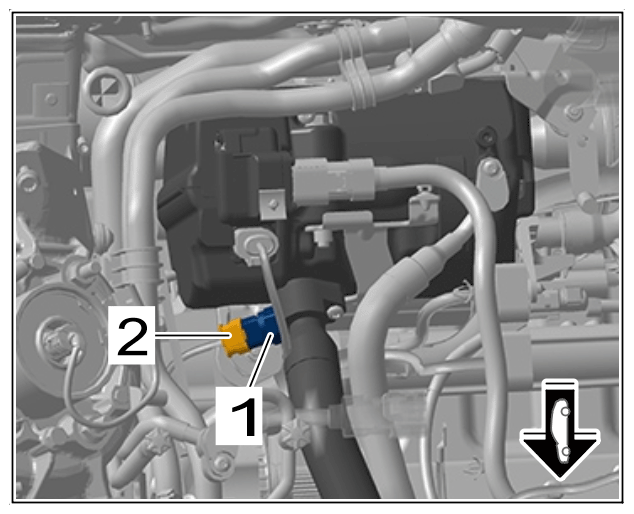

   Pressure sensor (PT2)

   1. 1.1 Replace O-ring on the pressure sensor -1-  and coat it with refrigerant oil.
   2. 1.2 Screw in and tighten pressure sensor -1-  using > T40363 - a/f 24 socket wrench  .

      > Tightening torque 10 Nm (7.5 ftlb.)

   3. 1.3 Connect and lock electric plug connection -2-  .
