Installation Position

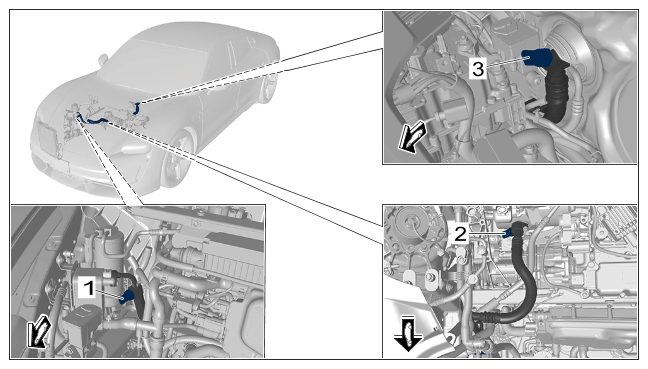

Fig 1: Pressure Sensor Components Location
G15565948Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of pressure sensors

1  Pressure sensor PT1
2  Pressure sensor PT2
3  Pressure sensor PT3
