Removing Pressure Sensor
WARNING:
Refrigerant
- Danger of freezing
→ Avoid contact with refrigerant.
→ Wear personal protective gear.
→ Observe the safety regulations for working on air-conditioned vehicles and handling refrigerant.
→ Observe the safety regulations for extraction and filling systems.
→ Observe the instructions for repairing air-conditioning systems and storing spare parts.

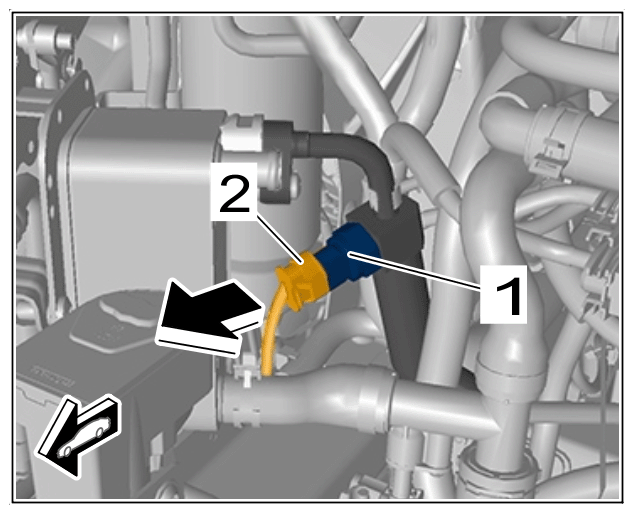

- Release electric plug connection -2-
and disconnect it from the pressure sensor -1-
.
Plug connection for pressure sensor

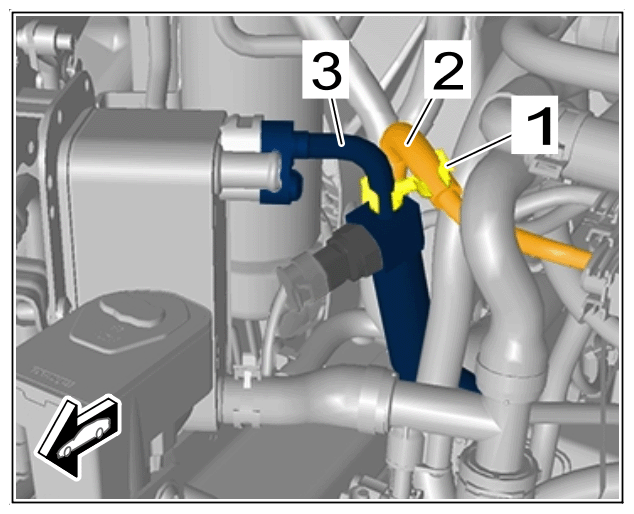

- Loosen -1-
clip from wiring harness -2-
on the refrigerant line -3-
.
Wiring harness on refrigerant line

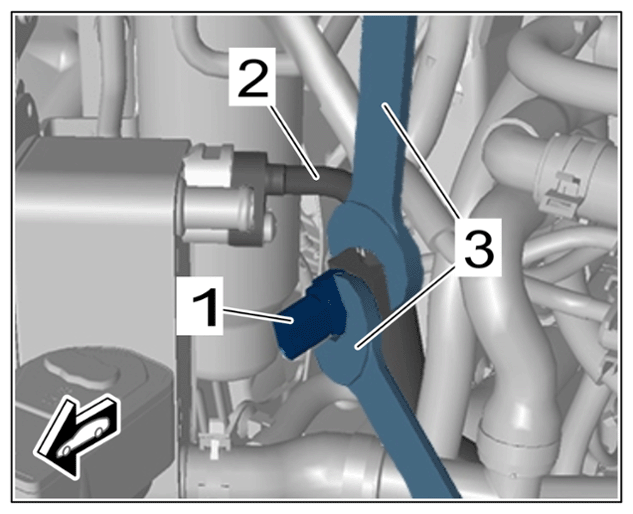

- Loosen pressure sensor -1-
using an open-ended wrench, size 24 -3-
and use an open-ended wrench, size 21 -3-
to counter at the refrigerant line -2-
.
Pressure sensor on refrigerant line
- Unscrew pressure sensor.
