Installing Expansion Valve 1

NOTE: Opened refrigerant system for repairs.

Risk of moisture getting into the refrigerant system.
Risk of contaminating the refrigerant circuit.
Risk of saturation and irreparable damage to desiccator.
Irreparable damage to the desiccator can damage the compressor and evaporator.
→ After opening the refrigerant circuit, close off the refrigerant lines/connections immediately using the relevant stoppers. To avoid contaminating the refrigerant circuit, the stoppers for the different refrigerants must be stored and used separately.

→ The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

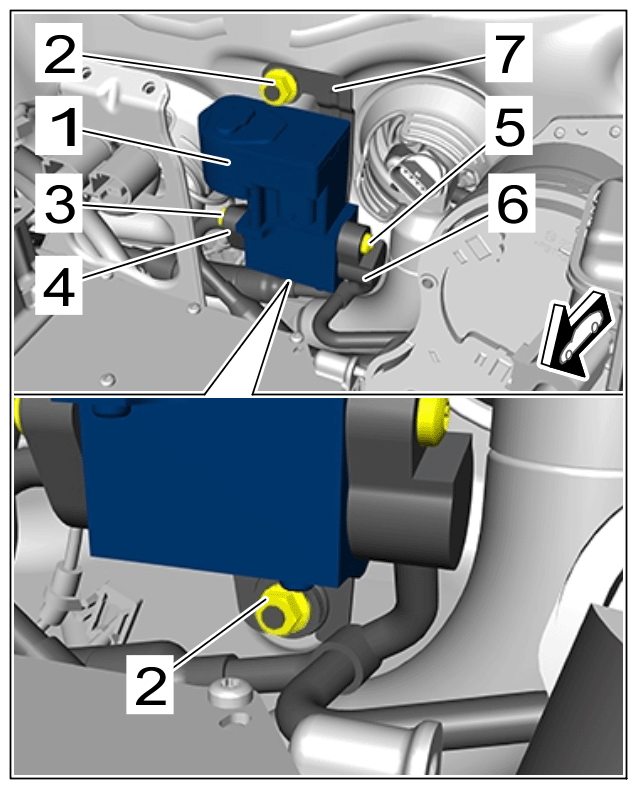

Install expansion valve -1- .
1. 1.1 Replace O-rings on refrigerant lines -4 and 6- .
2. 1.2 Position expansion valve -1- and attach refrigerant line -6- .
3. 1.3 Fit and tighten screw -5- , then carefully lift expansion valve holder -7- from firewall until screw -5- becomes accessible.
  > Tightening torque 8 Nm (5.9 ftlb.)
4. 1.4 Push on refrigerant line -4- .
5. 1.5 Fit and tighten screw -3- .
  > Tightening torque 8 Nm (5.9 ftlb.)
6. 1.6 Fit and tighten nuts -2- .
  > Tightening torque 8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Expansion valve

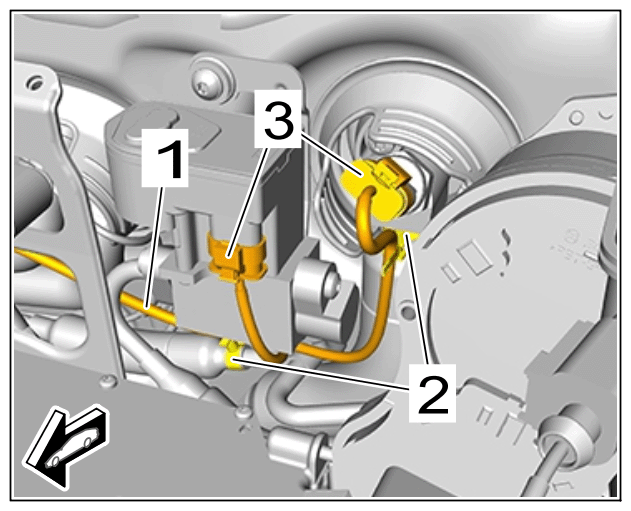

Secure electric wire harness -1- .
1. 2.1 Position electric wire harness -1- .
2. 2.2 Connect and lock electric plug connections -3- .
3. 2.3 Clip in clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness
