Removing Check Valve
- Danger of freezing
→ Avoid contact with refrigerant.
→ Wear personal protective gear.
→ Observe the safety regulations for working on air-conditioned vehicles and handling refrigerant.
→ Observe the safety regulations for extraction and filling systems.
→ Observe the instructions for repairing air-conditioning systems and storing spare parts.
Information
Working on the refrigerant circuit:
When removing components, close off all openings immediately using commercially available stoppers.
Store air-conditioning system components in a dry and closed-off area.
When fitting components, do not remove the stoppers until shortly before installation.
Likewise, do not remove the protective foil from the desiccator until just before installation. The desiccator absorbs moisture from the air and is then useless.
Do not carry out repairs in the open during damp weather.
The desiccator should be replaced as soon as one component of the air conditioning system has been replaced or if the air conditioning system was open for > 20 minutes.
Moisture in the refrigerant circuit not only leads to poor cooling, but oversaturation can also cause the desiccator to disintegrate and contaminate the air-conditioning system from inside. This can result in expensive and complicated repairs.
Check sealing rings on the refrigerant lines for damage and replace them if necessary.
Before re-installing these air-conditioning system components, flush them out with nitrogen.
Use a pressure reducer when working with nitrogen.
Evacuate the refrigerant circuit according to instructions.

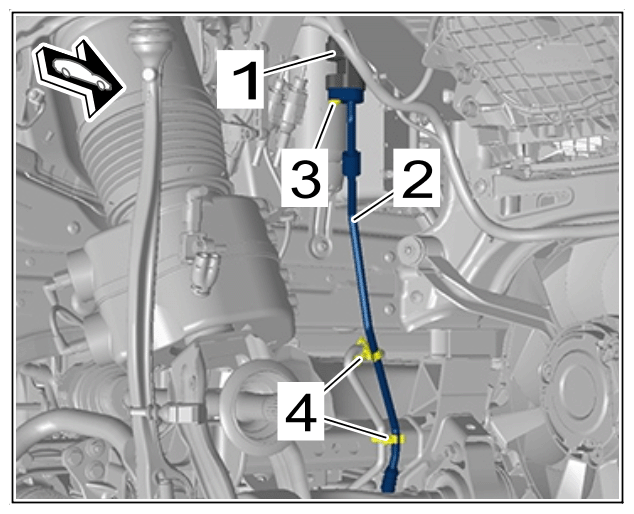

- Disconnect refrigerant line -2-
at the bottom of the check valve -1-
.
Refrigerant line at bottom of check valve
- 1.1 Unscrew screw -3- from refrigerant line -2- at the bottom of the check valve -1- .
- 1.2 Unclip refrigerant line from clips -4-
. The number of clips can vary depending on model year and equipment.
Information
During removal: Close off refrigerant lines and connections using suitable stoppers.
During installation: Do not remove stoppers from refrigerant lines and connections until shortly beforehand.
- 1.3 Disconnect refrigerant line -2- from check valve -1- .

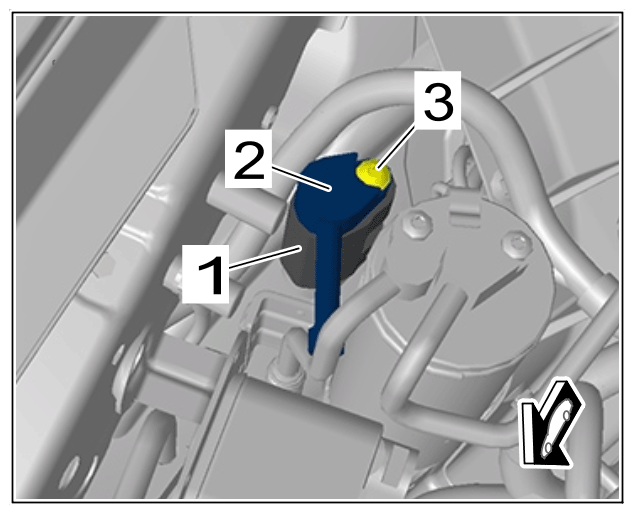

- Unscrew screw -3- from refrigerant line -2- at the top of the check valve -1- and remove check valve -1- .
Refrigerant line at top of check valve
