Installing Desiccator

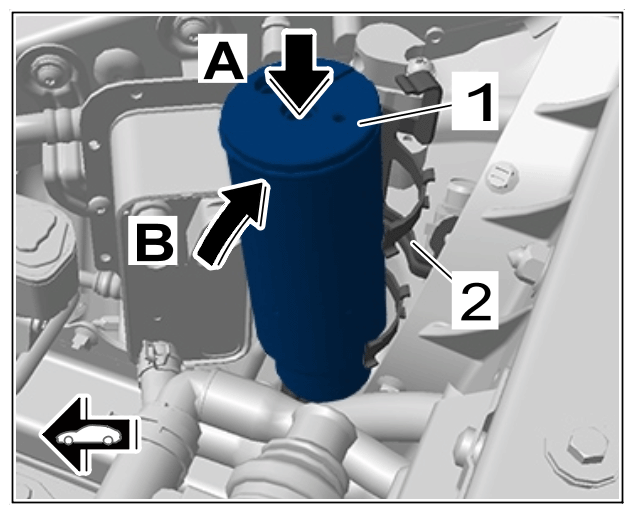

1. Push desiccator -1-  from above -arrow A-  into the holder -2-  and tilt it in direction of -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Desiccator in holder

2. Insert the stop of the holder -2-  into the groove on the desiccator -1-  and fit the lower screw-type clamp.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

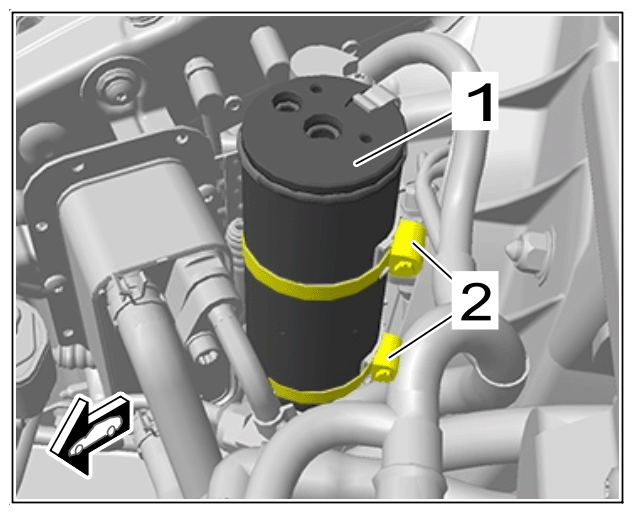

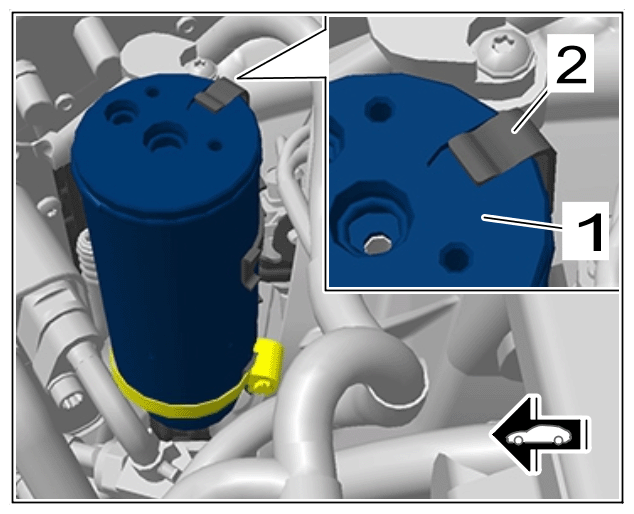

   Stop on holder for desiccator

3. Install upper screw-type clamp and tighten both screw-type clamps -2-  to the prescribed tightening torque. > Tightening torque 6 Nm (4.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw-type clamps on desiccator

   Information

   Before re-installing the component, check the sealing rings on the refrigerant lines for damage and replace them if necessary.

   Coat sealing rings for refrigerant lines with the relevant refrigerant oil.

   Do not open the stoppers for the refrigerant lines and connections until shortly before installation.

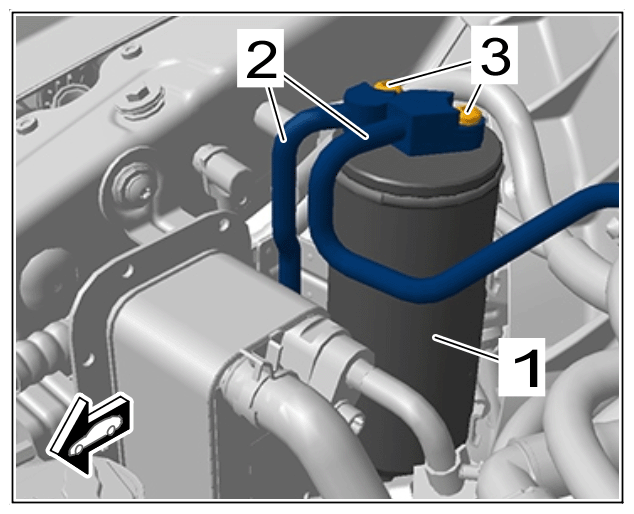

4. Fit refrigerant lines -2-  on desiccator -1-  and tighten screws -3-  to the prescribed tightening torque. > Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant lines to desiccator
