Installing Condenser Fan

Information

• New fan has prefabricated holes without thread.
• Before a new fan is installed, threads must be cut in the prefabricated holes.
• Self-tapping screws cut their own thread during installation.
• Always use new bolts.
• The use of thread cutters is not permitted.

1. Fit new screws -1-  and carefully screw them in and out again.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

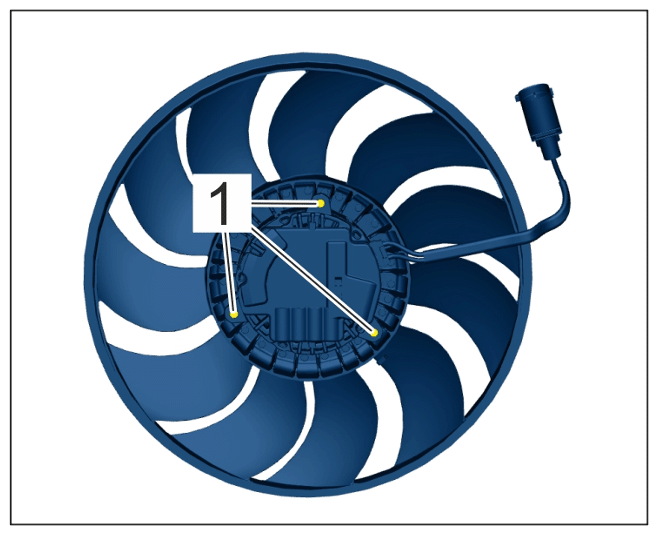

   Bores in condenser fan

2. Install condenser fan -1-  .
   1. 2.1 Move condenser fan -1-  into installation position.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

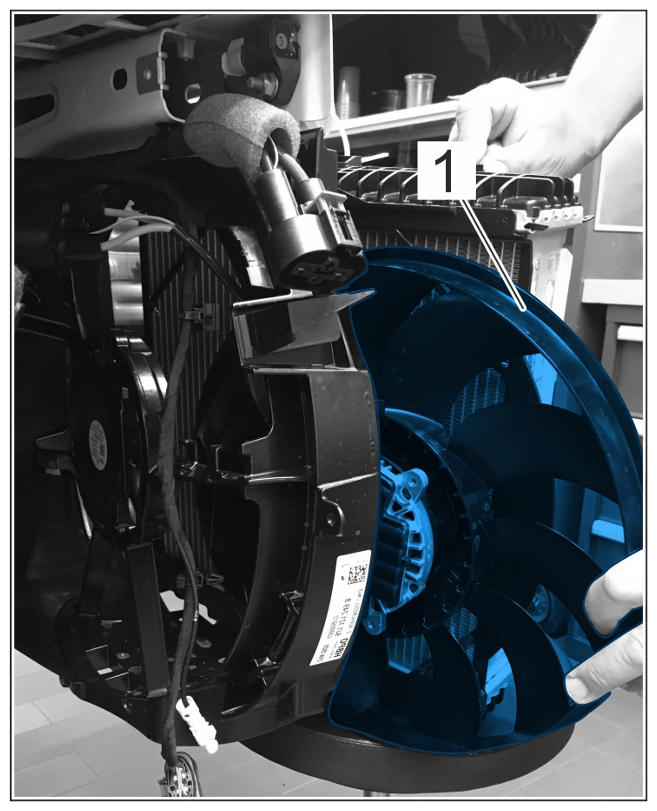

      Installing condenser fan

   2. 2.2 Fit screws -1-  and tighten to the prescribed tightening torque. > Tightening torque 5 Nm (3.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

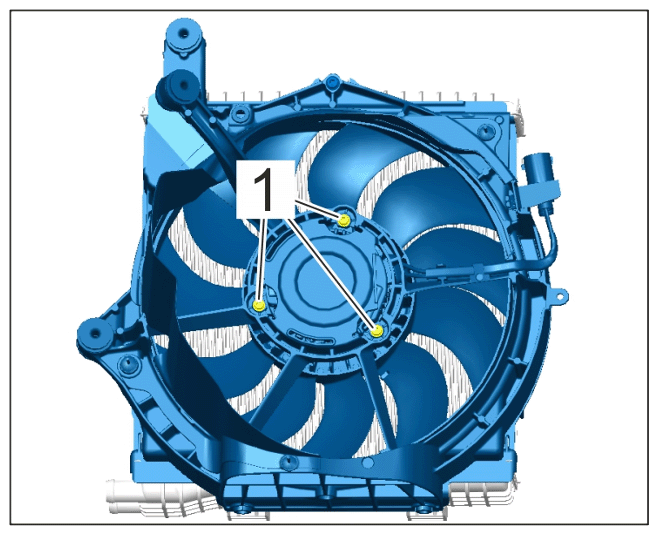

   Condenser fan mounting

3. Secure the condenser -2-  to the fan housing.
   1. 3.1 Remove tie-wrap.
   2. 3.2 Insert condenser -2-  into the cooling fan housing guides. Fit screw -1-  using > VAS 6959 - Torx bit T30  through the opening -3-  and tighten to the prescribed tightening torque. > Tightening torque 4.5 Nm (3.3 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

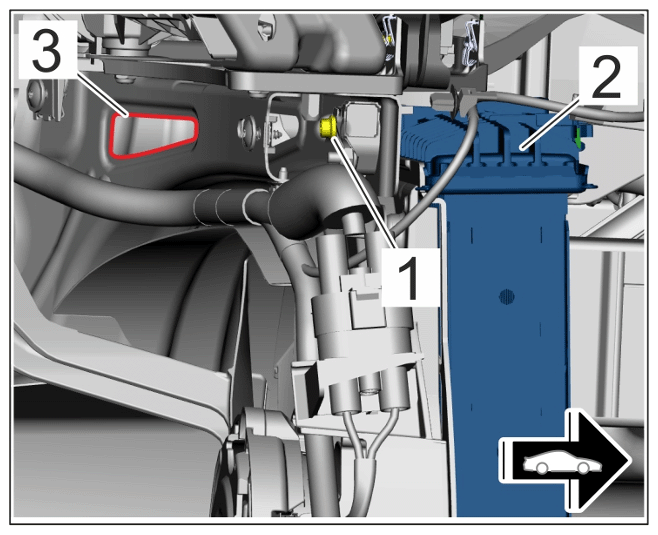

   Mounting for condenser

4. Secure wire harness.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

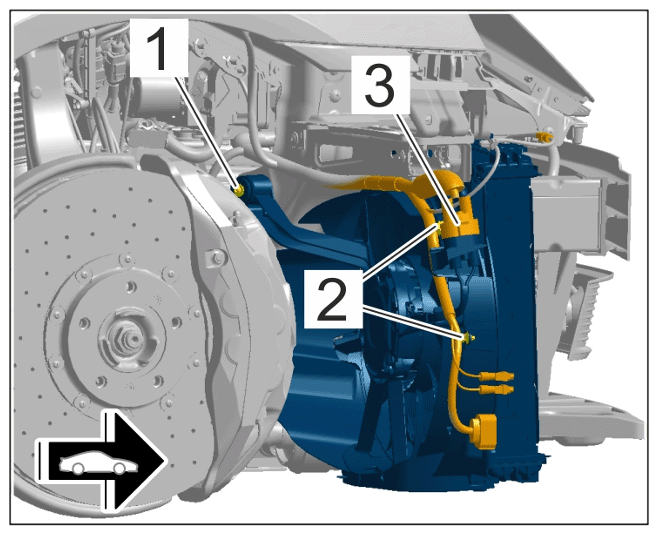

   Wire harness on condenser fan

   1. 4.1 Plug in and lock cable plug -3-  .
   2. 4.2 Fasten clips -2-  .
