Technical Values

Location	Description	Type	Basic value
Screw securing condenser fan to body		Tightening torque	8 Nm (6 ftlb.)

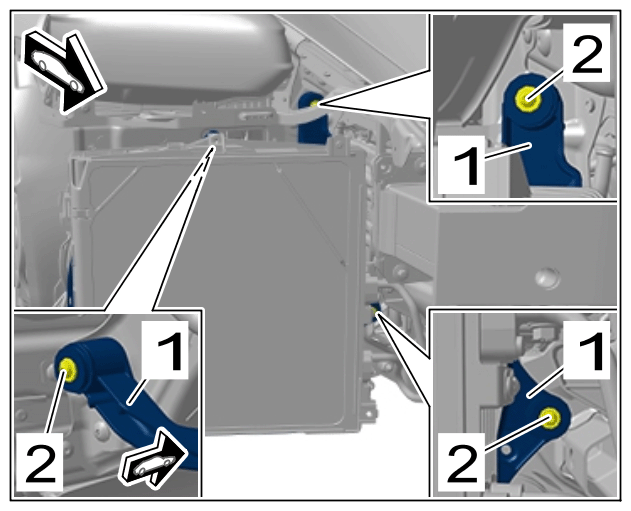

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Condenser fan housing on body
Screw securing condenser frame to fan frame		Tightening torque	4.5 Nm (3.25 ftlb.)

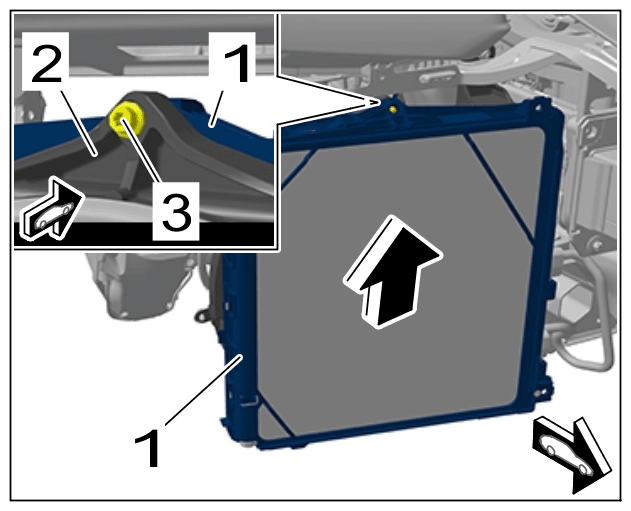

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Condenser frame on fan housing
Screw securing frame to condenser	Item 4	Tightening torque	4 Nm (3 ftlb.)

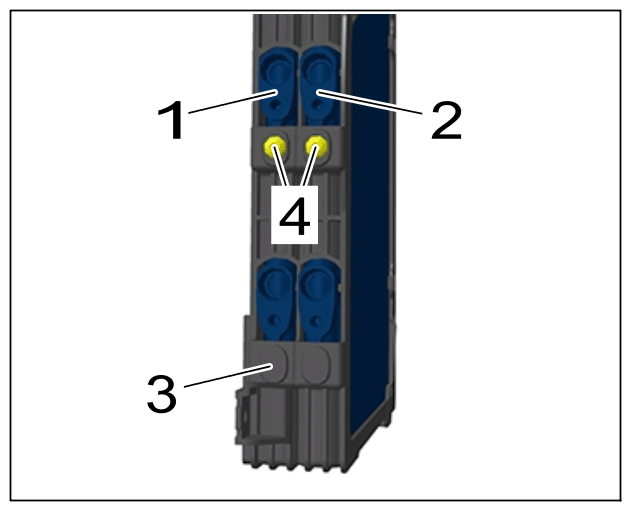

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Frame on condenser
Screw securing air guide to condenser frame	Item 3	Tightening torque	2.5 Nm (1.75 ftlb.)

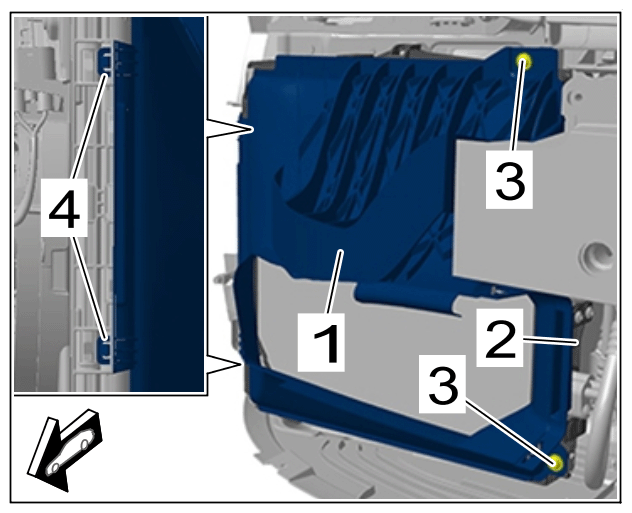

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air guide for condenser
Screw securing refrigerant line to condenser	Item 3	Tightening torque	8 Nm (6 ftlb.)
