Remove Condenser

Information

Working on the refrigerant circuit:

When removing components, close off all openings immediately using commercially available stoppers.

Store air-conditioning system components in a dry and closed-off area.

When fitting components, do not remove the stoppers until shortly before installation.

Likewise, do not remove the protective foil from the desiccator until just before installation. The desiccator absorbs moisture from the air and is then useless.

Do not carry out repairs in the open during damp weather.

The desiccator should be replaced as soon as one component of the air conditioning system has been replaced or if the air conditioning system was open for > 20 minutes.

Moisture in the refrigerant circuit not only leads to poor cooling, but oversaturation can also cause the desiccator to disintegrate and contaminate the air-conditioning system from inside. This can result in expensive and complicated repairs.

Check sealing rings on the refrigerant lines for damage and replace them if necessary.

Before re-installing these air-conditioning system components, flush them out with nitrogen.

Use a pressure reducer when working with nitrogen.

Evacuate the refrigerant circuit according to instructions.

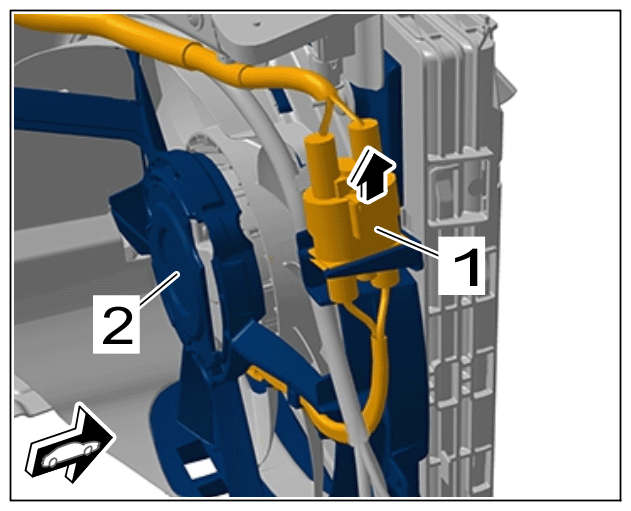

1. Unclip and release electric plug connection -1-  from the fan housing -2-  and disconnect it -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for condenser

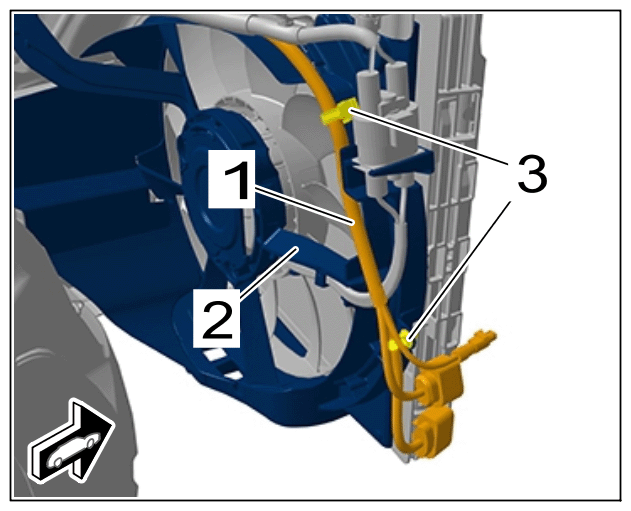

2. Unclip wiring harness -1-  from front apron at the fan housing -2-  from clip -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness on fan housing

   NOTE: Opened refrigerant system for repairs.

   • Risk of moisture getting into the refrigerant system.
   • Risk of contaminating the refrigerant circuit.
   • Risk of saturation and irreparable damage to desiccator.
   • Irreparable damage to the desiccator can damage the compressor and evaporator.

     → After opening the refrigerant circuit, close off the refrigerant lines/connections immediately using the relevant stoppers. To avoid contaminating the refrigerant circuit, the stoppers for the different refrigerants must be stored and used separately.

     → The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

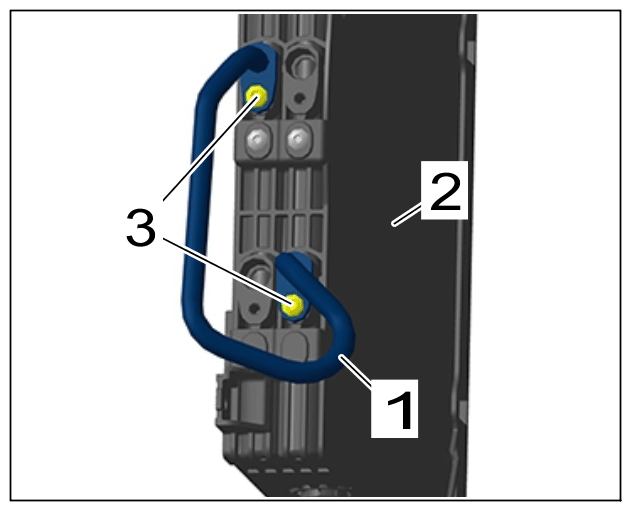

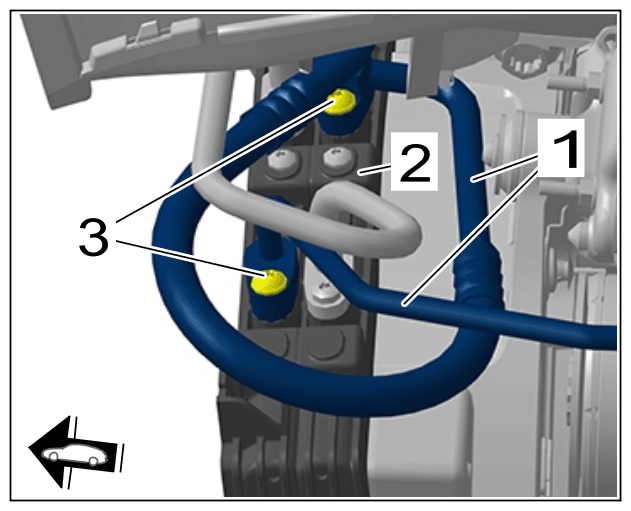

3. Unscrew screws -3-  for refrigerant lines -1-  at the condenser -2-  and disconnect refrigerant lines -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Refrigerant line on condenser

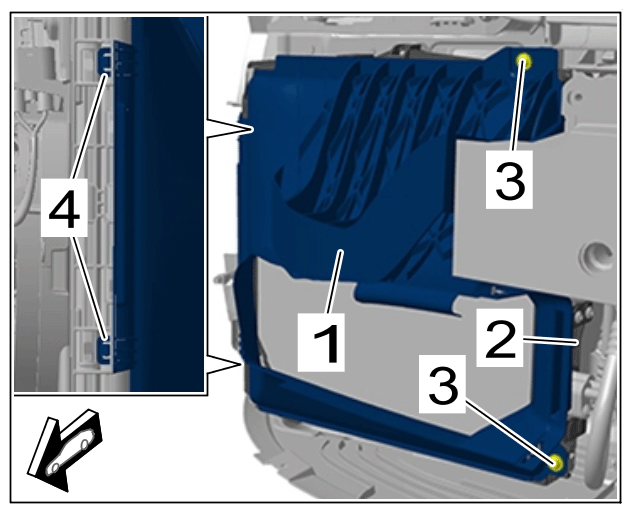

4. Remove air guide -1-  at the condenser frame -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air guide for condenser

   1. 4.1 Unscrew screws -3-  .
   2. 4.2 Loosen clips -4-  on the air guide -1-  and remove air guide -1-  .
   NOTE: Opened refrigerant system for repairs.

   • Risk of moisture getting into the refrigerant system.
   • Risk of contaminating the refrigerant circuit.
   • Risk of saturation and irreparable damage to desiccator.
   • Irreparable damage to the desiccator can damage the compressor and evaporator.

     → After opening the refrigerant circuit, close off the refrigerant lines/connections immediately using the relevant stoppers. To avoid contaminating the refrigerant circuit, the stoppers for the different refrigerants must be stored and used separately.

     → The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

5. Unscrew screws -3-  for refrigerant lines -1-  at the condenser -2-  and disconnect refrigerant lines -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Refrigerant lines on condenser

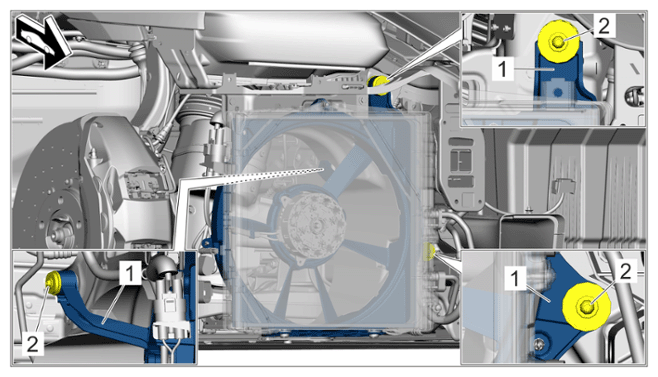

6. Unscrew screws -2-  from condenser fan housing -1-  at the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Condenser fan housing on body

7. Remove condenser with fan.

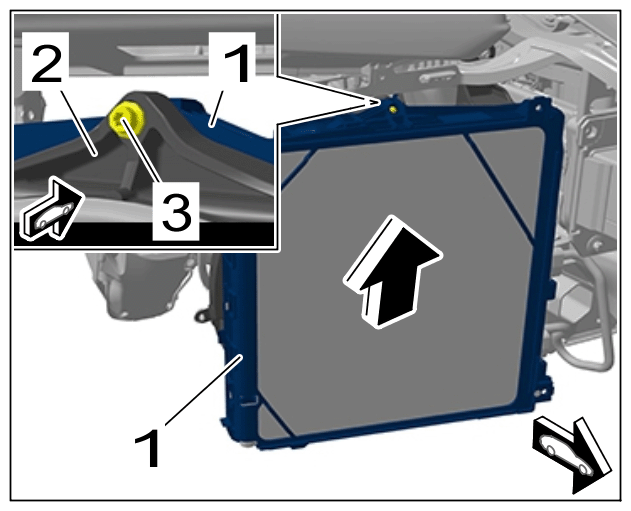

8. Unscrew screw -3-  from condenser frame -1-  at the fan housing -2-  and disconnect it from the fan housing -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Condenser frame on fan housing

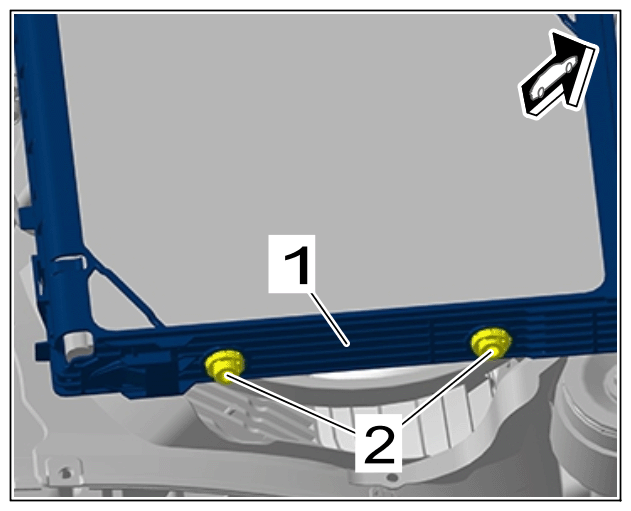

9. Check guides -2-  at the bottom of the condenser frame -1-  and replace them if damaged.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guides on condenser frame

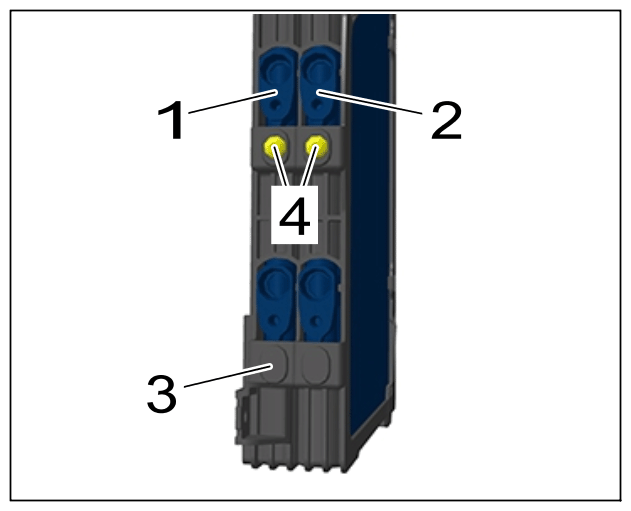

10. Unscrew screws -4-  from frame -3-  at the condenser -1 and 2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Frame on condenser

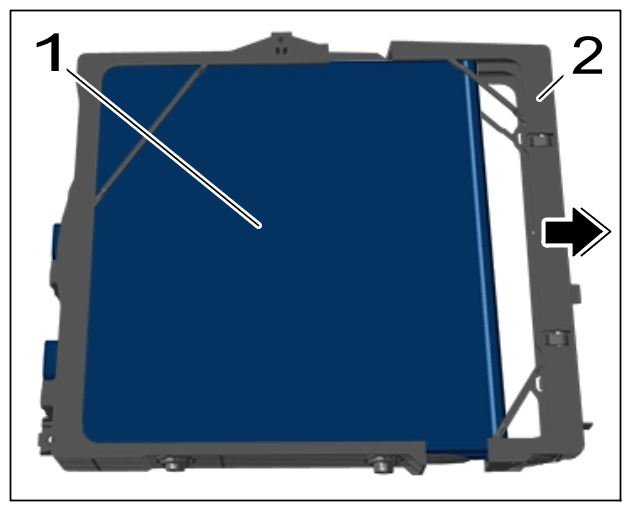

11. Unclip frame half -2-  at the top and bottom of the condenser -1-  and remove it -Arrow-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Frame at condenser

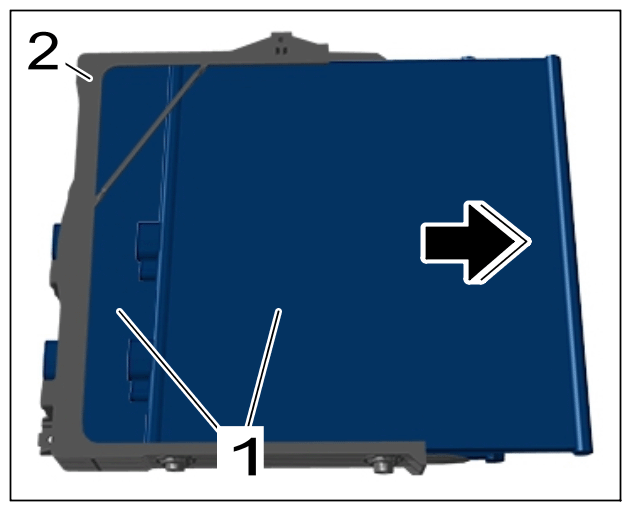

12. Remove -Arrow-  the relevant condenser -1-  from the frame -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Capacitor
