Installing Valve (EAV 5)

NOTE: Opened refrigerant system for repairs.

Risk of moisture getting into the refrigerant system.
Risk of contaminating the refrigerant circuit.
Risk of saturation and irreparable damage to desiccator.
Irreparable damage to the desiccator can damage the compressor and evaporator.
→ After opening the refrigerant circuit, close off the refrigerant lines/connections immediately using the relevant stoppers. To avoid contaminating the refrigerant circuit, the stoppers for the different refrigerants must be stored and used separately.

→ The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

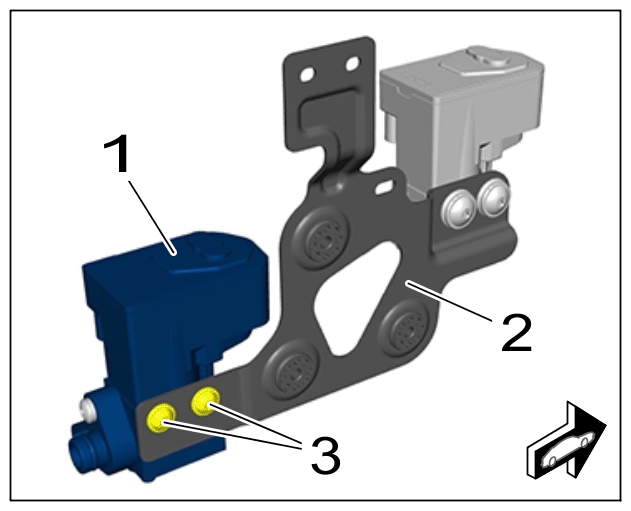

Fit valve (EAV 5) -1- to holder -2- .
1. 1.1 Position valve (EAV 5) -1- , fit and tighten screws -3- .
  > Tightening torque 8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Valve (EAV 5)

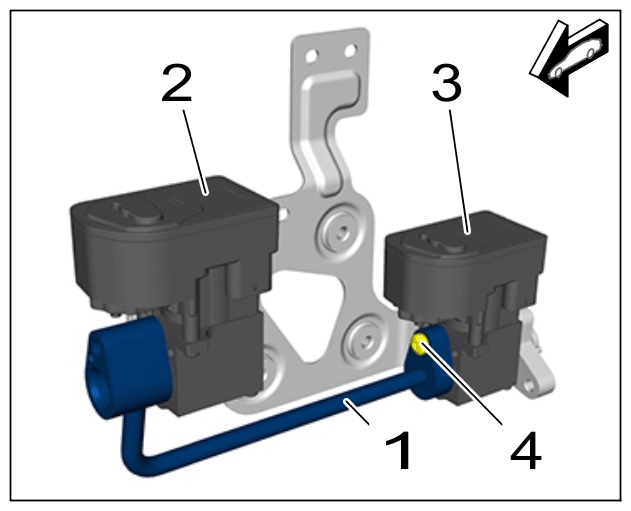

Install refrigerant line -1- .
1. 2.1 Replace O-rings on refrigerant line -1- .
2. 2.2 Push refrigerant line -1- onto valves -2 and 3- .
3. 2.3 Fit and tighten screw -4- .
  > Tightening torque 8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant line from valve EAV 3 to valve EAV 5.

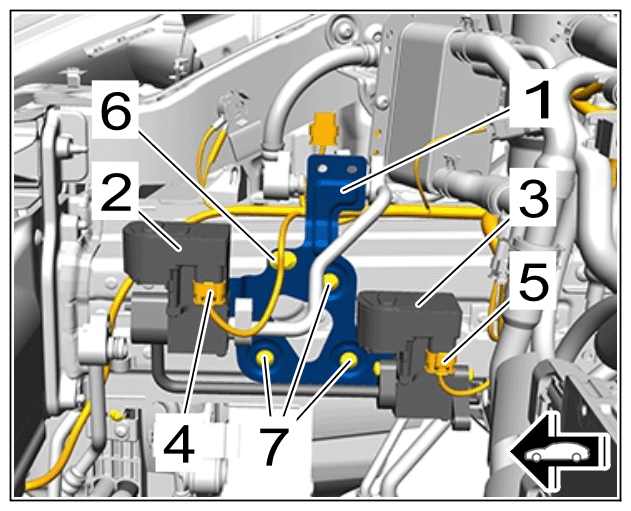

Install holder -1- with valves -2 and 3- .
1. 3.1 Position holder -1- .
2. 3.2 Fit and tighten screws -7- .
  > Tightening torque 8 Nm (6 ftlb.)
3. 3.3 Clip in clip -6- .
4. 3.4 Connect and lock electric plug connections -4 and 5- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder with valves

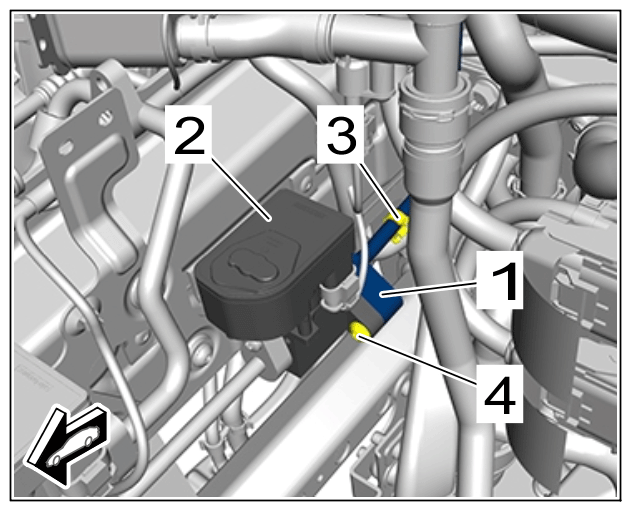

Secure refrigerant line -1- .
1. 4.1 Replace O-ring on refrigerant line -1- .
2. 4.2 Push refrigerant line -1- onto valve (EAV 5) -2- .
3. 4.3 Fit and tighten screw -4- .
  > Tightening torque 8 Nm (6 ftlb.)
4. 4.4 Clip in clip -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant line on valve (EAV 5)

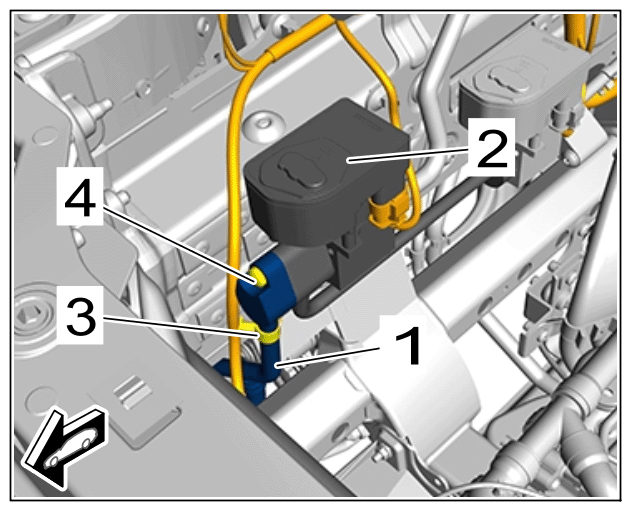

Secure refrigerant line -1- .
1. 5.1 Replace O-ring on refrigerant line -1- .
2. 5.2 Push refrigerant line -1- onto valve (EAV 3) -2- .
3. 5.3 Fit and tighten screw -4- .
  > Tightening torque 8 Nm (6 ftlb.)
4. 5.4 Clip in clip -3- .

G15565885

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant line on valve (EAV 3)
