87 Air Conditioning -- Y1A - TAYCAN (Y1A)
>>
WM, 87491903 Removing And Installing Valve (EAV 5)
>>
Installation Position
Installation Position

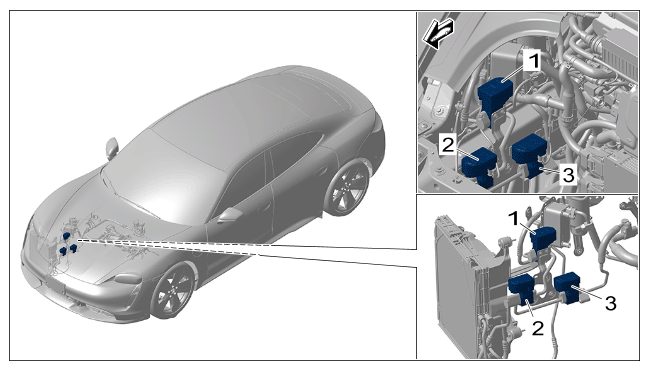

Fig 1: Valve (EAV5) Components Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation position
1
Valve: EAV 2
2
Valve: EAV 3
3
Valve: EAV 5
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
