Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

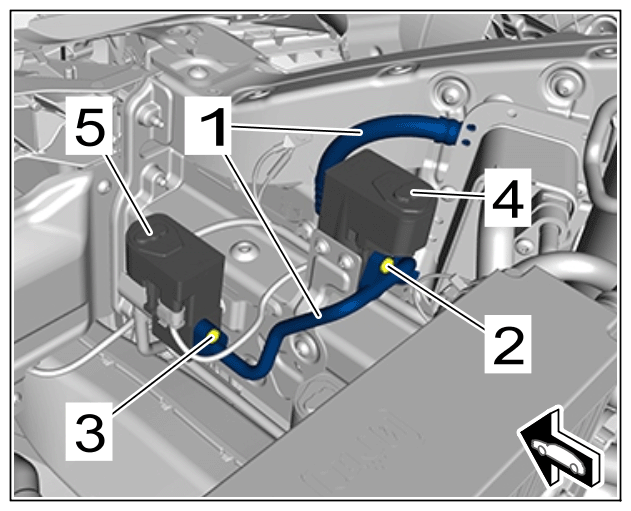

| Screws securing refrigerant line to valve EAV2 and EAV3 | Item 2 and 3 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Refrigerant line section from heat exchanger (ICond) to shut-off valve |
|||||
| Screw securing refrigerant line to valve (EAV2) | Item 3 | Tightening torque | 8 Nm (6 ftlb.) | ||
| Screw securing valve (EAV 2) to holder | Item 4 | Tightening torque | 8 Nm (6 ftlb.) | ||
