87 Air Conditioning -- Y1A - TAYCAN (Y1A)
>>
WM, 87491901 Removing And Installing Valve (EAV2)
>>
Installation Position
Installation Position

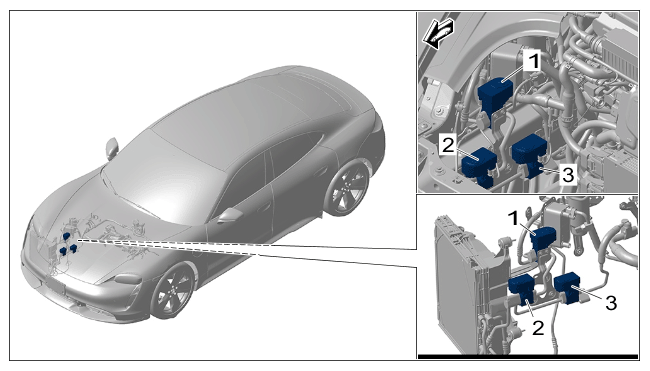

Fig 1: Valve (EAV2) Components Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation position
1
Valve (EAV 2)
2
Valve (EAV 3)
3
Valve (EAV 5)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
