Technical Values

Location	Description	Type	Basic value
Screw securing evaporator (chiller) holder to body	Item 3	Tightening torque	8 Nm (6 ftlb.)

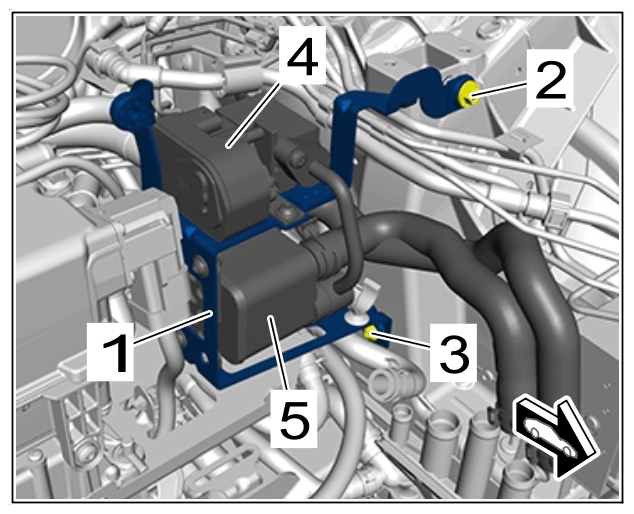

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Evaporator (chiller) holder
Nut securing evaporator (chiller) holder to body	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Evaporator (chiller) holder
Screw securing refrigerant line to evaporator (chiller)	Item 4	Tightening torque	8 Nm (6 ftlb.)
Fastening nut for bulkhead	-1-	Tightening torque	8 Nm (6 ftlb.)

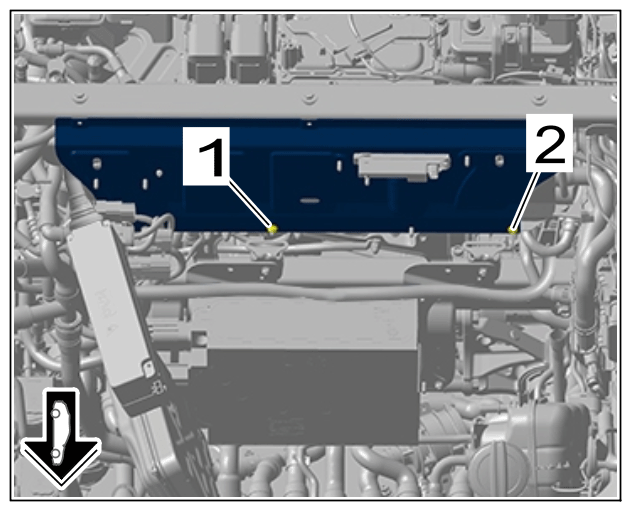

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bulkhead
Fastening screw for bulkhead	-2-	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing bulkhead
