Installing Refrigerant Line Between Condenser And Desiccator (Section From Condenser To Check Valve)
NOTE:
Opened refrigerant system for repairs.
- Risk of moisture getting into the refrigerant system.
- Risk of contaminating the refrigerant circuit.
- Risk of saturation and irreparable damage to desiccator.
- Irreparable damage to the desiccator can damage the compressor and evaporator.
→ After opening the refrigerant circuit, close off the refrigerant lines/connections immediately using the relevant stoppers. To avoid contaminating the refrigerant circuit, the stoppers for the different refrigerants must be stored and used separately.
→ The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.
- Install refrigerant line -1-
.
- 1.1 Replace O-rings on refrigerant line -1- .
- 1.2 Position refrigerant line -1- and push it onto the block at the threaded joint -6- .
- 1.3 Fit and tighten screw -5-
.
> Tightening torque 8 Nm (6 ftlb.)
- 1.4 Clip in clip -4 - .
- 1.5 Push refrigerant line -1- onto the condenser -3- .
- 1.6 Fit and tighten screw -2-
.
> Tightening torque 8 Nm (6 ftlb.)

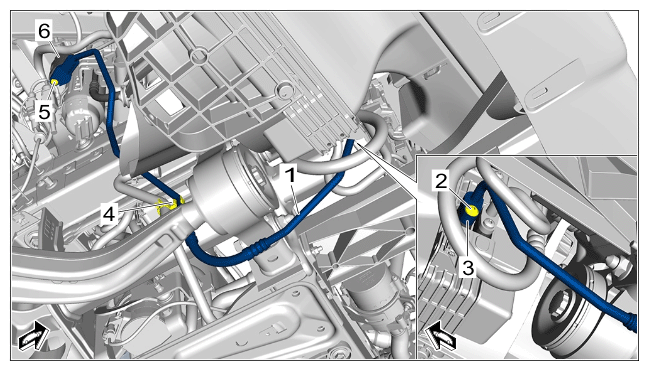

Refrigerant line between condenser and desiccator
