Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

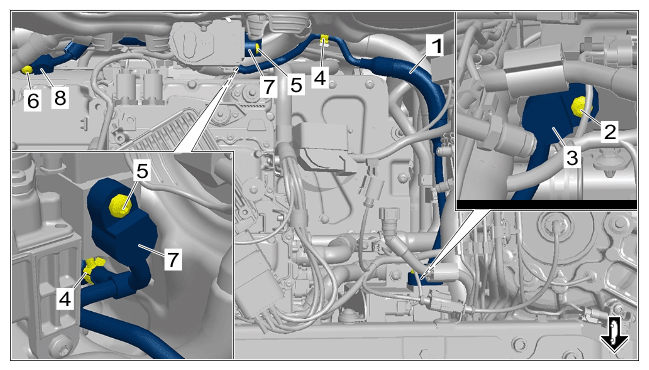

| Screw securing refrigerant line to internal heat exchanger | Item 6 | Tightening torque | 8 Nm (5.9 ftlb.) | ||
|
Refrigerant line between compressor and evaporator (section from internal heat exchanger connection point to expansion valve 1/expansion valve 2) |
|||||
| Screw securing refrigerant line to expansion valve (EXV2)/chiller | Item 2 | Tightening torque | 8 Nm (5.9 ftlb.) | ||
| Screw securing refrigerant line to internal heat exchanger | Item 4 | Tightening torque | 8 Nm (6 ftlb.) | ||
