Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

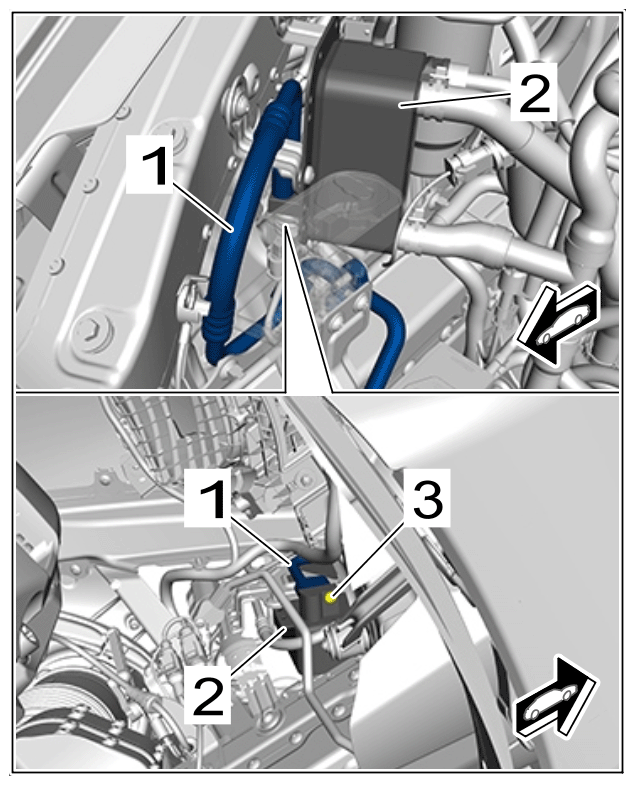

| Screw securing refrigerant line (from valve (EAV2) to heat exchanger (ICond)) | Item 3 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Refrigerant line section from air-conditioning compressor to heat exchanger (ICond) |
|||||

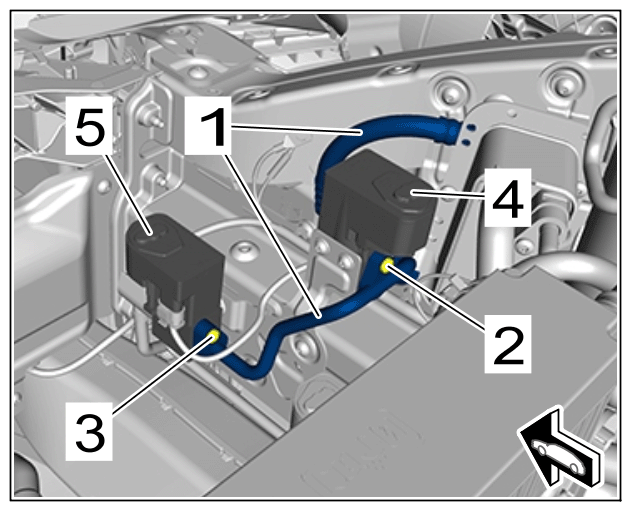

| Screws securing refrigerant line to valve EAV2 and EAV3 | Item 2 and 3 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Refrigerant line section from heat exchanger (ICond) to shut-off valve |
|||||
| Screw securing refrigerant line to valve (EAV2) | Item 3 | Tightening torque | 8 Nm (6 ftlb.) | ||
