Removing Refrigerant Line Between Compressor And Condenser (Section From Heat EXCHANGER (ICOND) To Shut-Off Valve)

NOTE: Opened refrigerant system for repairs.

Risk of moisture getting into the refrigerant system.
Risk of contaminating the refrigerant circuit.
Risk of saturation and irreparable damage to desiccator.
Irreparable damage to the desiccator can damage the compressor and evaporator.
→ After opening the refrigerant circuit, close off the refrigerant lines/connections immediately using the relevant stoppers. To avoid contaminating the refrigerant circuit, the stoppers for the different refrigerants must be stored and used separately.

→ The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

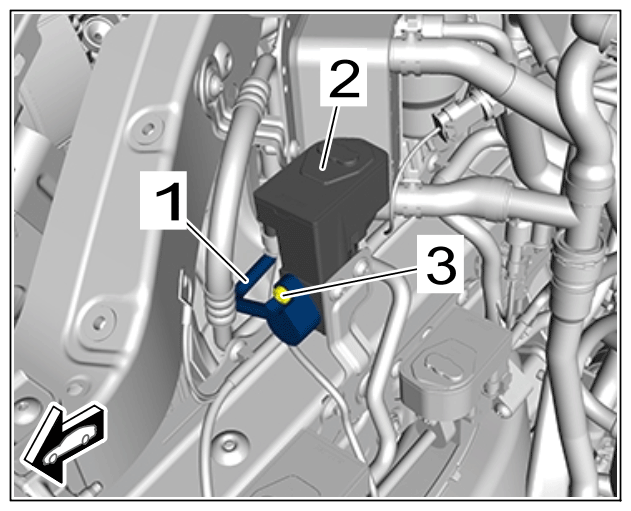

Loosen refrigerant line -1- from shut-off valve -2- .
1. 1.1 Unscrew screw -3- .
2. 1.2 Disconnect refrigerant line -1- from shut-off valve -2- and set it aside.
3. 1.3 Close off line connections using suitable stoppers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant line on shut-off valve

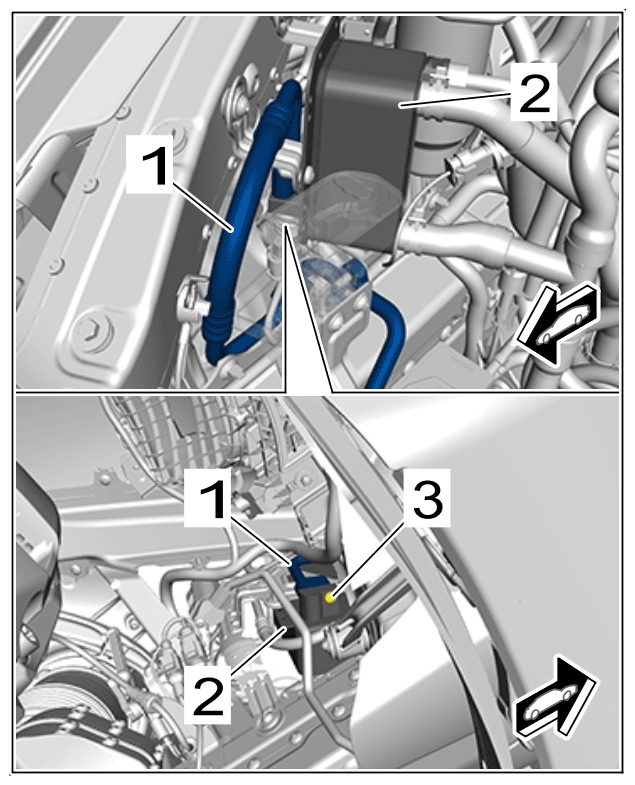

Loosen refrigerant line -1- from heat exchanger (ICond) -2- .
1. 2.1 Unscrew screw -3- .
2. 2.2 Disconnect refrigerant line -1- from heat exchanger (ICond) -2- .
3. 2.3 Close off line connections using suitable stoppers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant line on heat exchanger (ICond)

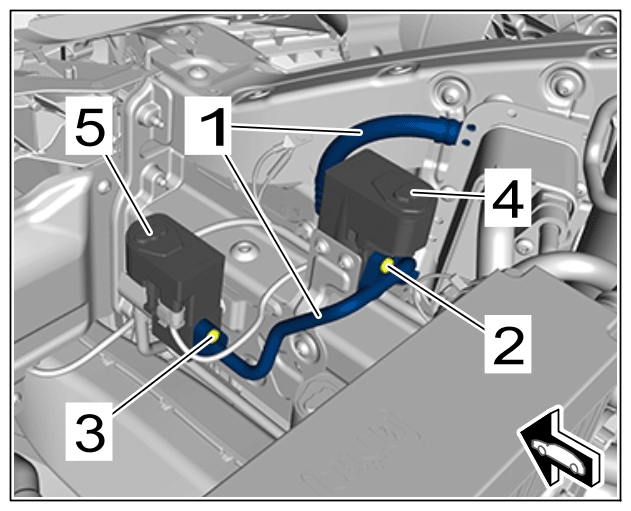

Remove refrigerant line -1- .
1. 3.1 Unscrew and remove screws -2 and 3- .
2. 3.2 Disconnect refrigerant line -1- from shut-off valve -4- and shut-off valve 3 -5- at the same time.
3. 3.3 Close off line connections using suitable stoppers and remove refrigerant line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant line section from heat exchanger (ICond) to shut-off valve
