Installing Refrigerant Line Between Compressor And Condenser (Section From Heat EXCHANGER (ICOND) To Shut-Off Valve)

NOTE: Opened refrigerant system for repairs.

Risk of moisture getting into the refrigerant system.
Risk of contaminating the refrigerant circuit.
Risk of saturation and irreparable damage to desiccator.
Irreparable damage to the desiccator can damage the compressor and evaporator.
→ After opening the refrigerant circuit, close off the refrigerant lines/connections immediately using the relevant stoppers. To avoid contaminating the refrigerant circuit, the stoppers for the different refrigerants must be stored and used separately.

→ The desiccator must be replaced if the air humidity is high and if the refrigerant circuit is left open for a long time.

Install refrigerant line -1- .
1. 1.1 Replace O-rings on refrigerant line -1- .
2. 1.2 Position refrigerant line -1- .
3. 1.3 Push refrigerant line -1- onto shut-off valve -4- and shut-off valve 3 -5- at the same time.
4. 1.4 Fit and tighten screws -2 and 3- .
  > Tightening torque 8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

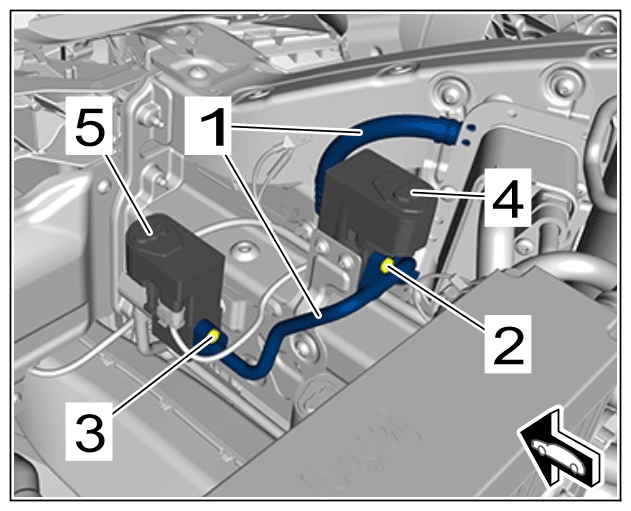

Refrigerant line section from heat exchanger (ICond) to shut-off valve
Secure refrigerant line -1- to the heat exchanger (ICond) -2- .
1. 2.1 Replace O-rings on refrigerant line -1- .
2. 2.2 Push on refrigerant line -1- .
3. 2.3 Fit and tighten screw -3- .
  > Tightening torque 8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

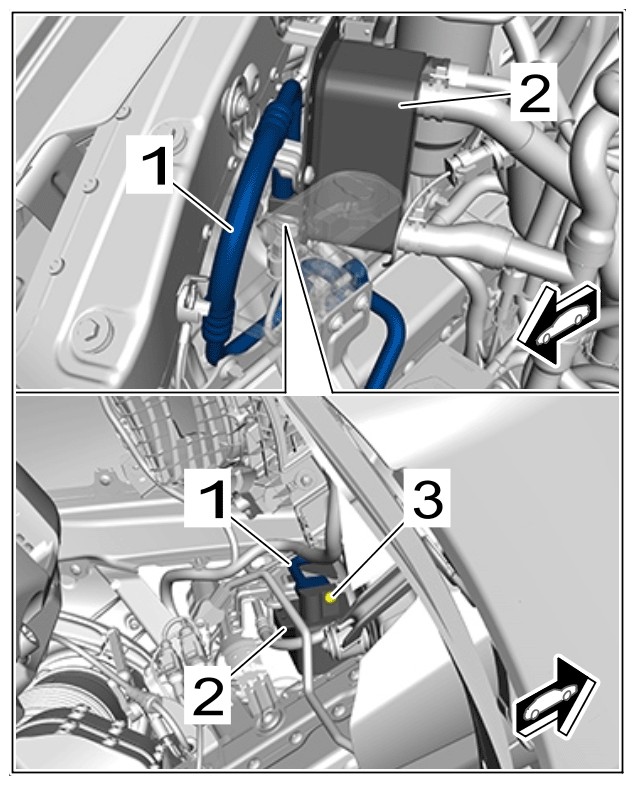

Refrigerant line on heat exchanger (ICond)
Secure refrigerant line -1- to shut-off valve -2- .
1. 3.1 Replace O-ring on refrigerant line -1- .
2. 3.2 Position refrigerant line -1- and push it onto the shut-off valve -2- .
3. 3.3 Fit and tighten screw -3- .
  > Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

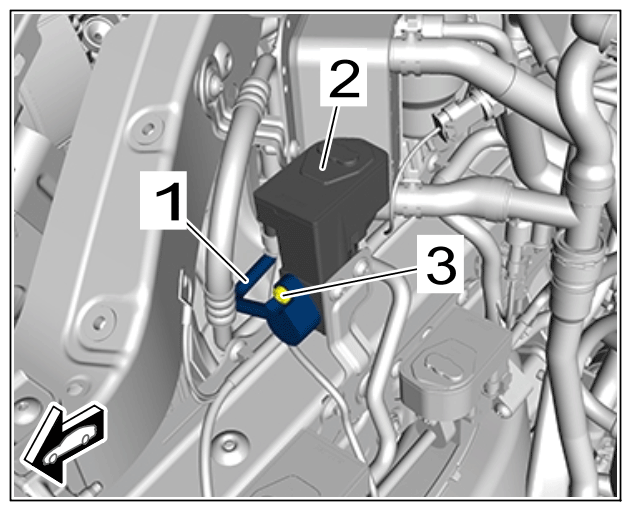

Refrigerant line on shut-off valve
