Installation Position

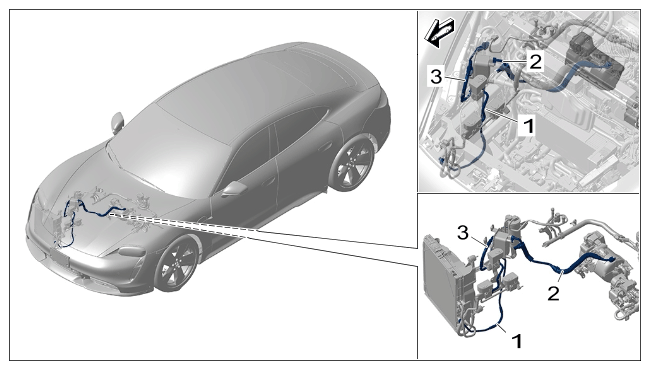

Fig 1: Refrigerant Line Between Compressor And Condenser (Section From Heat Exchanger (ICond) To Shut-OFF Valve) Components Location
G15565764Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  Section: Condenser to check valve
2  Section: Air-conditioning compressor to heat exchanger (ICond)
3  Section: Heat exchanger (ICond) to shut-off valve
