Installation Position

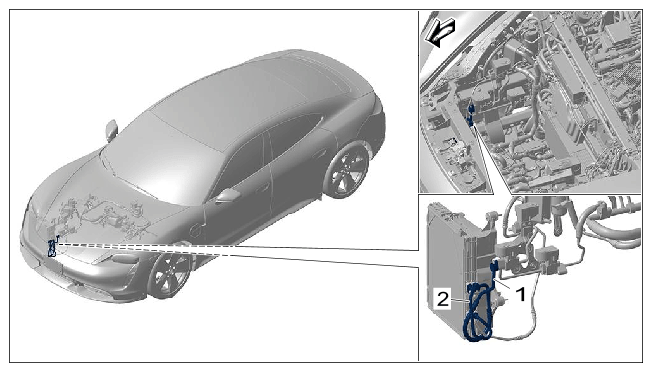

G15565749Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

Refrigerant line section: Shut-off valve to condenser
Refrigerant line from condenser to condenser
