Removing Air Quality Sensor

  1. Remove air quality sensor -1-  .
    1. 1.1 Release and disconnect electric plug connection -2-  .
    2. 1.2 Release air quality sensor -1-  in -direction of arrow-  and pull it to the rear.

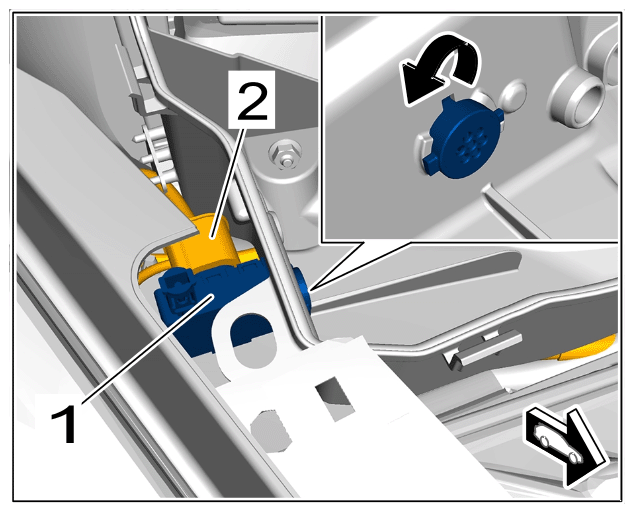

G15565715Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air quality sensor
