Installing Servo Motor For Rear Right Air Distribution

  1. Install servo motor for rear right air distribution -1-  .
    1. 1.1 Fit servo motor for rear right air distribution -1-  on the guide lugs -4-  .
    2. 1.2 Screw in and tighten screws -3-  .

      > Tightening torque 1.5 Nm (1 ftlb.)

    3. 1.3 Connect and lock electric plug connection -2-  .

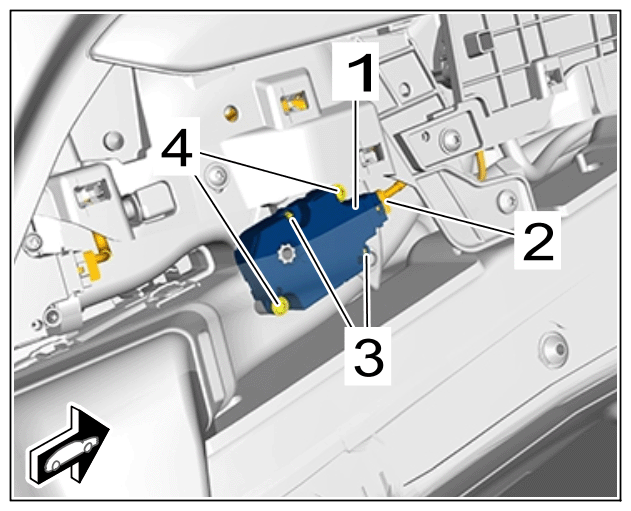

    G15565699Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Servo motor for rear right air distribution

  2. Position the carpet at the right.
