Installing Servo Motor For Right FOOTWELL Outlet Vent

  1. Install the -1-  servo motor for the right footwell outlet vent,
    1. 1.1 Fit the servo motor for the right footwell outlet vent -1-  on the guide lugs -4-  .
    2. 1.2 Screw in and tighten screws -3-  .

      > Tightening torque 1.5 Nm (1 ftlb.)

    3. 1.3 Connect and lock electric plug connection -2-  .

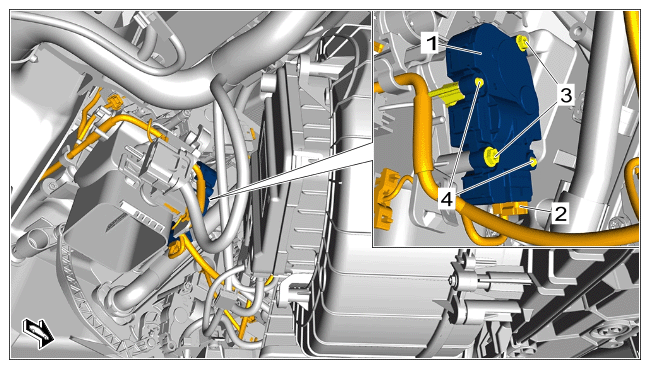

G15565629Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Servo motor for right footwell outlet vent
