Removing Servo Motor For Left FOOTWELL Outlet Vent

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Remove holder for air conditioning control unit -1- .
1. 1.1 Unscrew screws -2- and remove holder for air conditioning control unit -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for air conditioning control unit
Remove servo motor for left footwell outlet vent -1- .
1. 2.1 Release and disconnect electric plug connection -2- .
2. 2.2 Unscrew and remove screws -3- .
3. 2.3 Pull servo motor for the left footwell outlet vent -1- off the guide lugs -4- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

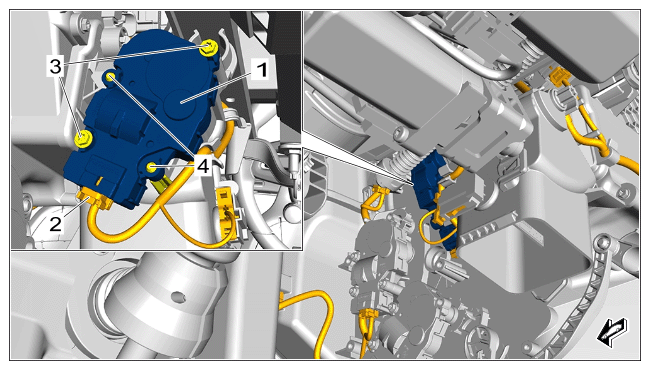

Servo motor for left footwell outlet vent
