Installing Servo Motor For Left FOOTWELL Outlet Vent

1. Install servo motor for left footwell outlet vent -1-  .
   1. 1.1 Fit the servo motor for the left footwell outlet vent -1-  on the guide lugs -4-  .
   2. 1.2 Screw in and tighten screws -3-  .

      > Tightening torque 1.5 Nm (1 ftlb.)

   3. 1.3 Connect and lock electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Servo motor for left footwell outlet vent

2. Install holder for air conditioning control unit -1-  .
   1. 2.1 Position holder for air conditioning control unit -1-  .
   2. 2.2 Screw in and tighten screws -2-  .

      > Tightening torque 1.5 Nm (1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

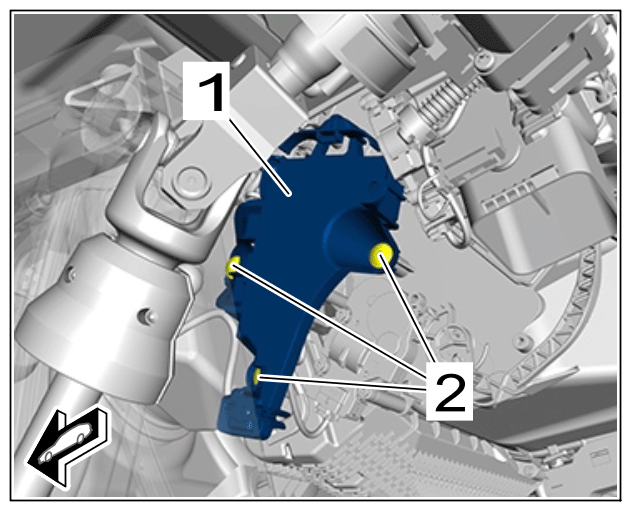

Holder for air conditioning control unit
