Removing The Servo Motor For The Front Right Centre Air Vent

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

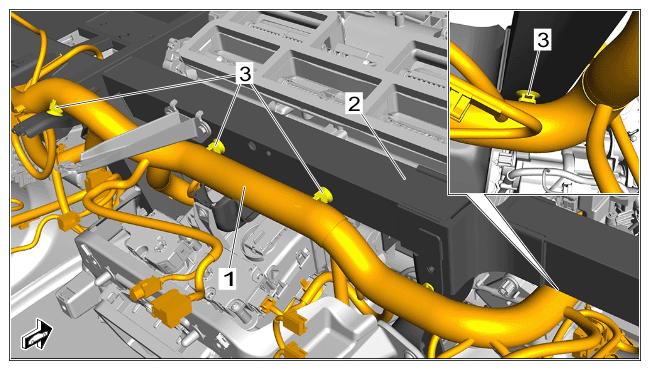

Disconnect the electric wire harness -1- from the dashboard bracket -2- .
1. 1.1 Release the clips -3- and set the electric wire harness -1- aside.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

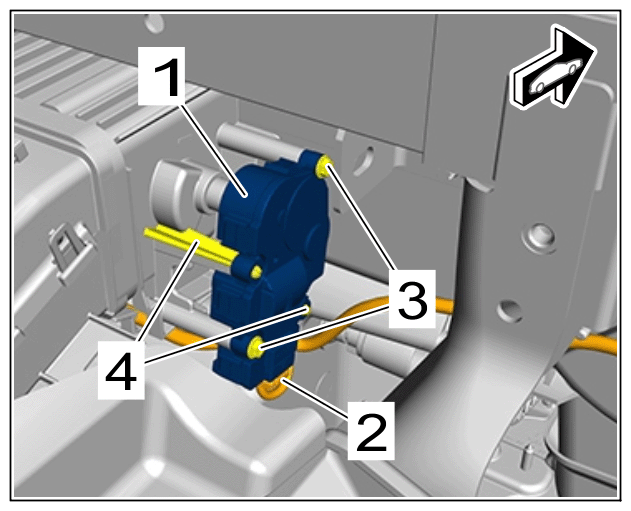

Remove the servo motor for the front right -1- centre air vent.
1. 2.1 Release and disconnect electric plug connection -2- .
2. 2.2 Unscrew and remove screws -3- .
3. 2.3 Draw the servo motor for front right centre air vent -1- off the guide lugs -4- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Servo motor for front right centre air vent
