Installing The Servo Motor For The Front Right Centre Air Vent

1. Install the servo motor for the front right centre air vent -1-  .
   1. 1.1 Fit servo motor for front right centre air vent -1-  on the guide lugs -4-  .
   2. 1.2 Screw in and tighten screws -3-  .

      > Tightening torque 1.5 Nm (1 ftlb.)

   3. 1.3 Connect and lock electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Servo motor for front right centre air vent

2. Secure electric wire harness -1-  to dashboard -2-  bracket.
   1. 2.1 Position electric wire harness -1-  and engage clips -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

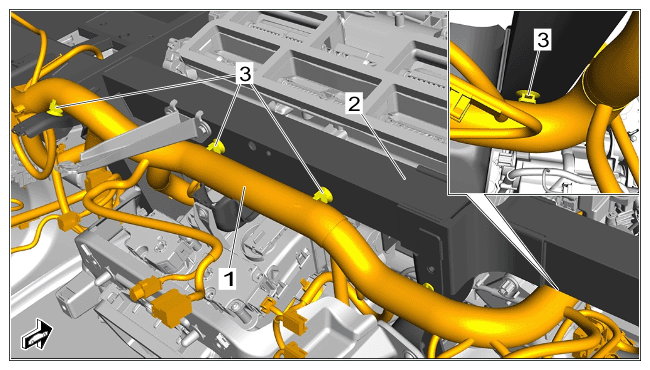

Electric wire harness
