Removing Servo Motor For Front Left Centre Air Vent

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Disconnect electric wire harness -1- from the dashboard bracket -2- .
1. 1.1 Release clips -3- and move electric wire harness -1- aside.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

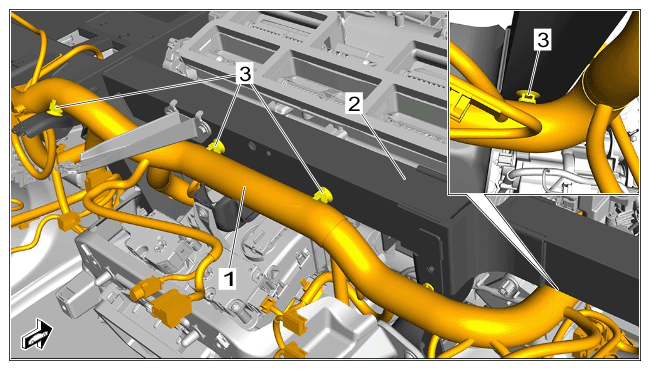

Electric wire harness
Remove servo motor for front left centre air vent -1- .
1. 2.1 Release and disconnect electric plug connection -2- .
2. 2.2 Unscrew and remove screws -3- .
3. 2.3 Pull servo motor for front left centre air vent -1- off the guide lugs -4- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

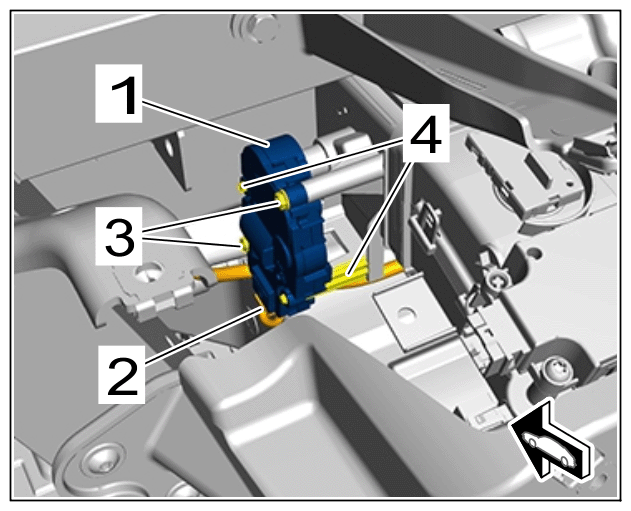

Servo motor for front left centre air vent
