Installing Servo Motor For Left Foot Bypass

1. Install servo motor for left foot bypass -1-  .
   1. 1.1 Fit the servo motor for the left foot bypass -1-  on the guide lugs -4-  .
   2. 1.2 Screw in and tighten screws -3-  .

      > Tightening torque 1.5 Nm (1 ftlb.)

   3. 1.3 Connect and lock electric plug connection -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

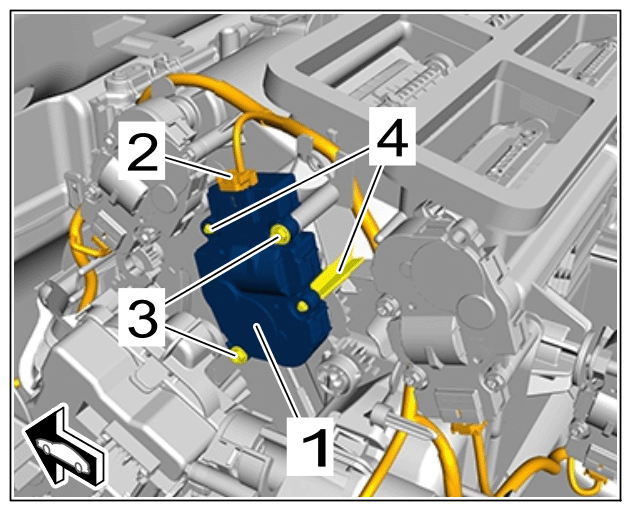

Servo motor for left foot bypass
