Installing Servo Motor For Fresh Air/Ram Air Flap

1. Install servo motor for fresh air/ram air flap -1-  .
   1. 1.1 Position servo motor for fresh air/ram air flap -1-  .
   2. 1.2 Screw in and tighten screws -3-  .

      > Tightening torque 1.5 Nm (1 ftlb.)

   3. 1.3 Connect and lock electric plug connection -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

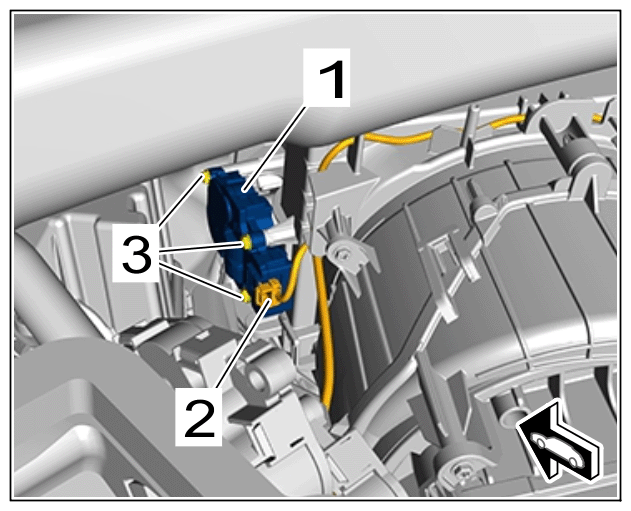

Servo motor for fresh air/ram air flap
