Removing Rear Centre Air Jet

1. Remove outlet vent trim -1-  .
   1. 1.1 Unclip clips -2-  and remove outlet vent trim -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Outlet vent trim

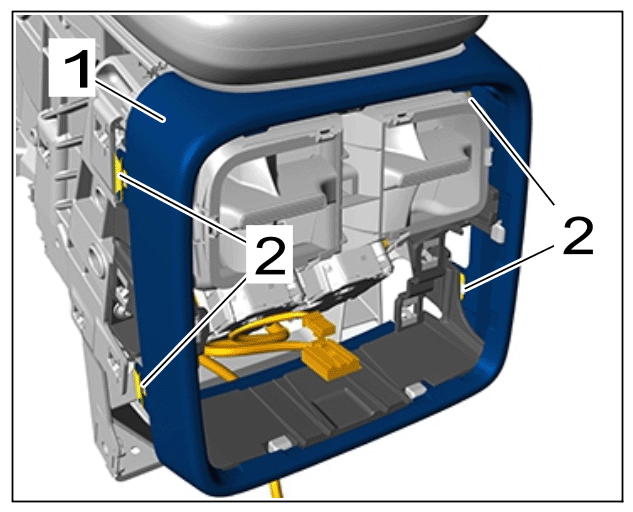

2. Remove glass trim -1-  .
   1. 2.1 Unclip clips -2-  and remove glass trim -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Glass trim

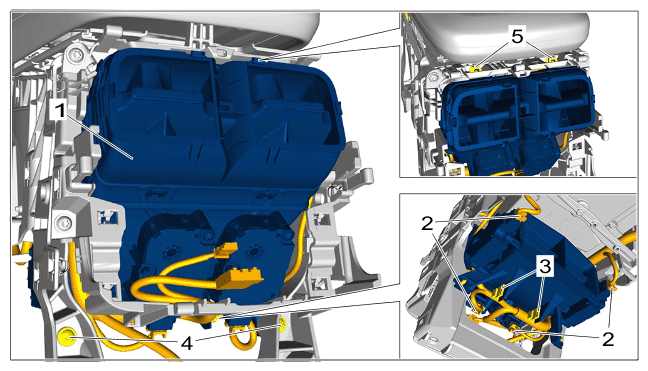

3. Remove rear centre air vent -1-  .
   1. 3.1 Release and disconnect electric plug connection on servo motors -2-  .
   2. 3.2 Unclip clips -3-  .
   3. 3.3 Unscrew and remove screws -4-  .
   4. 3.4 Unclip rear centre air vent -1-  from retaining clips -5-  and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear centre air vent
