Removing Centre Air Vent

  1. Remove centre air vent -1-  .
    1. 1.1 Unscrew and remove screws -3-  .
    2. 1.2 Pull centre air vent -1-  out of the front base carrier -2-  .
    3. 1.3 Release and disconnect electric plug connection for hazard warning light switch -4-  .

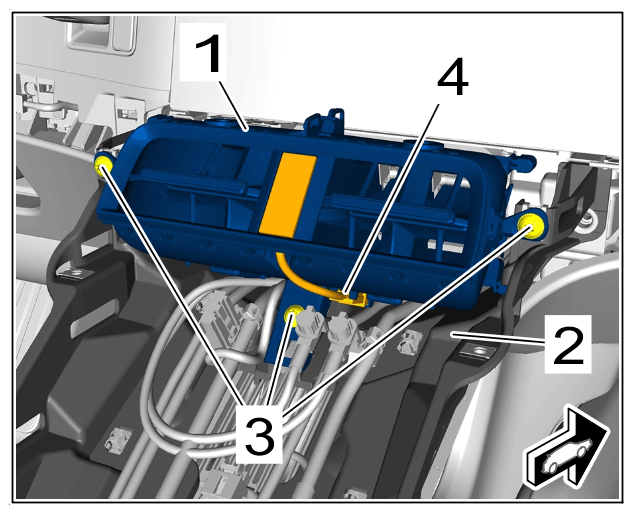

    G15565520Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Centre air vent
