Removing Air Ionizer

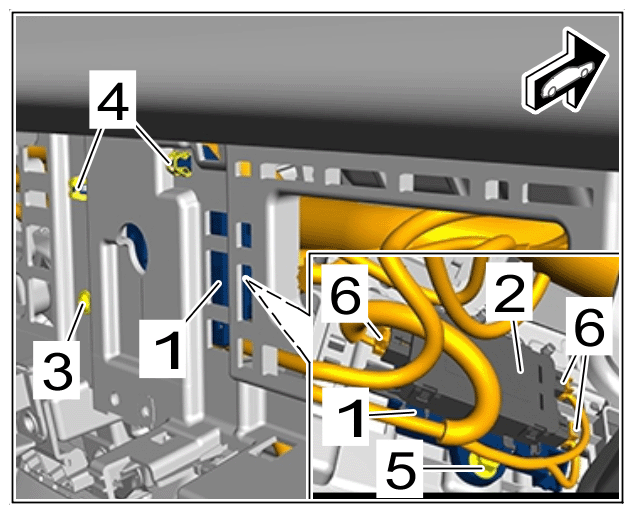

1. 1.1 Unscrew screw -3-  .
2. 1.2 Unclip air ionizer holder -1-  from retaining clips -4-  .
3. 1.3 Unclip clip -5-  from air ionizer holder -1-  .
4. 1.4 Release and disconnect electric plug connections -6-  .
5. 1.5 Remove air ionizer holder -1-  together with air ionizer -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air ionizer holder

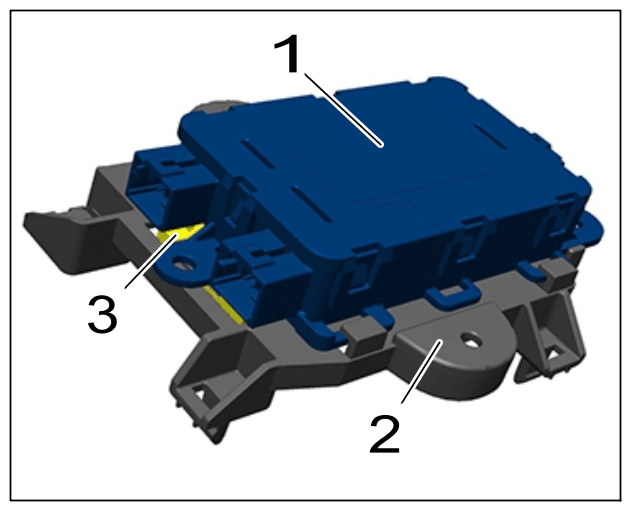

1. 2.1 Release retaining lug -3-  and push air ionizer -1-  out of air ionizer holder -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air ionizer
