Installing Directional-Control Valve (MVW1)

WARNING: Incorrect handling of high-voltage components

Electric shock
Short circuit
Fire
Explosion
→ Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.

→ Required qualification: High voltage technician or high voltage expert.

→ Observe national requirements and legislation for this work.

→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.

→ Observe general warning notes for working on the high-voltage system.

> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

Install directional-control valve (MVW1) -1- .
1. 1.1 Position directional-control valve (MVW1) -1- .
2. 1.2 Push on hoses -4- .
3. 1.3 Fasten spring band clamps -3- using > VAS 6891 - Spring Band Clamp Pliers .
4. 1.4 Connect and lock electric plug connection -5- .
5. 1.5 Fit and tighten screws -2- .
  > Tightening torque 8 Nm (6 ftlb.)

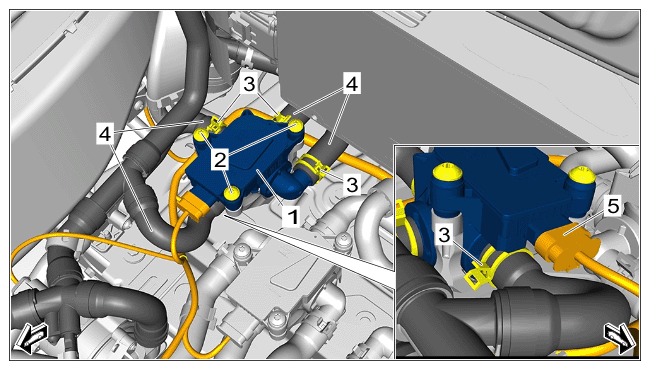

G15565424

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Directional-control valve (MVW1)
