Removing Front Footwell Outlet Vent (On Driver'S Side)

  1. Remove front footwell outlet vent -1-  .
    1. 1.1 Unscrew screw -2-  .
    2. 1.2 Pull front footwell outlet vent -1-  out of the connection piece for the air conditioner -3-  .
    3. 1.3 Unclip clip -4-  .
    4. 1.4 Remove front footwell outlet vent -1-  .

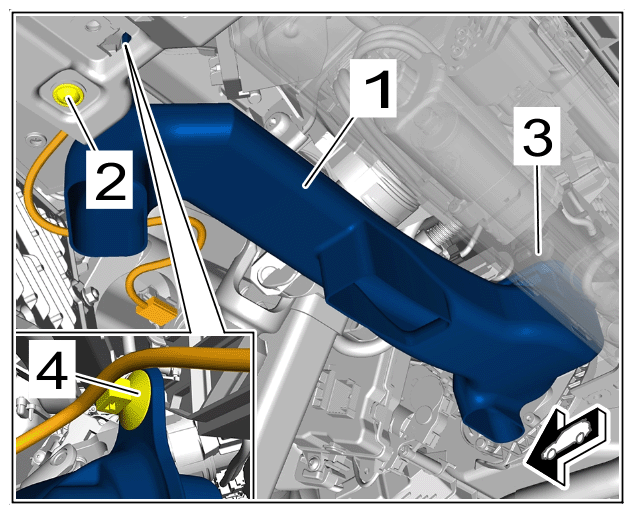

G15565413Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front footwell outlet vent (on driver's side)
