Installing Front Footwell Outlet Vent (On Passenger'S Side)

  1. Install front footwell outlet vent -1-  .
    1. 1.1 Position front footwell outlet vent -1-  .
    2. 1.2 Push front footwell outlet vent -1-  onto connection piece for air conditioner -3-  .
    3. 1.3 Screw in and tighten wing screw -2-  .

      > Tightening torque 0.7 Nm (0.5 ftlb.)

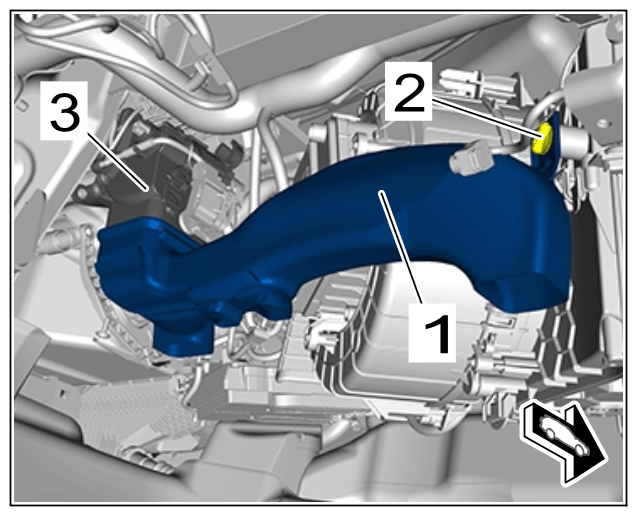

      G15565416Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front footwell outlet vent (on passenger's side)
