Installing Front Footwell Outlet Vent (On Driver'S Side)

1. Install front footwell outlet vent -1-  .
   1. 1.1 Position front footwell outlet vent -1-  .
   2. 1.2 Clip in clip -4-  .
   3. 1.3 Push front footwell outlet vent -1-  onto connection piece for air conditioner -3-  .
   4. 1.4 Screw in and tighten screw -2-  .

      > Tightening torque 1.5 Nm (1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

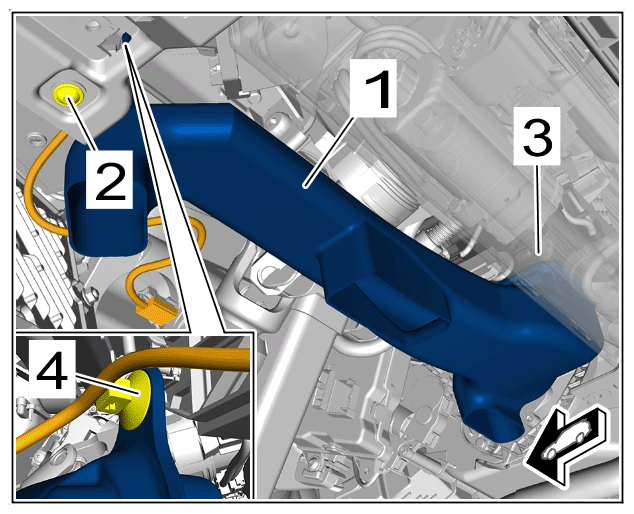

Front footwell outlet vent (on driver's side)
