Removing Heat EXCHANGER Hose
WARNING:
Incorrect handling of high-voltage components
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.
→ Observe general warning notes for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
Information
Electric contacts must never come into contact with coolant.

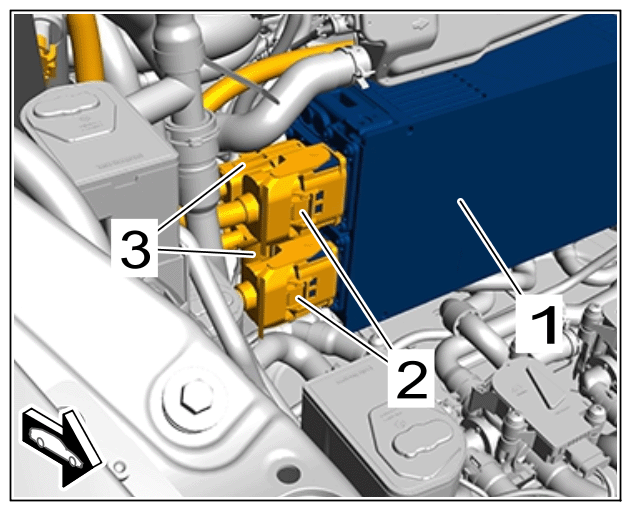

- Release and disconnect electric plug connections -2 and 3-
and set high-voltage lines aside.
Electric plug connections

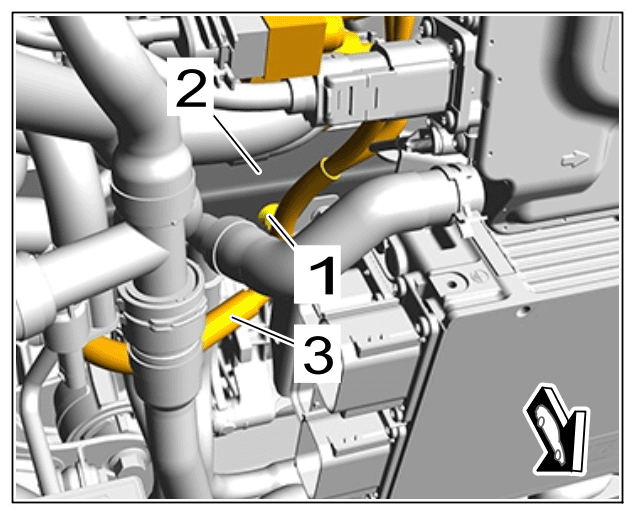

- Unclip clip -1-
from cross member -2-
and set electric line -3-
aside.
Clip

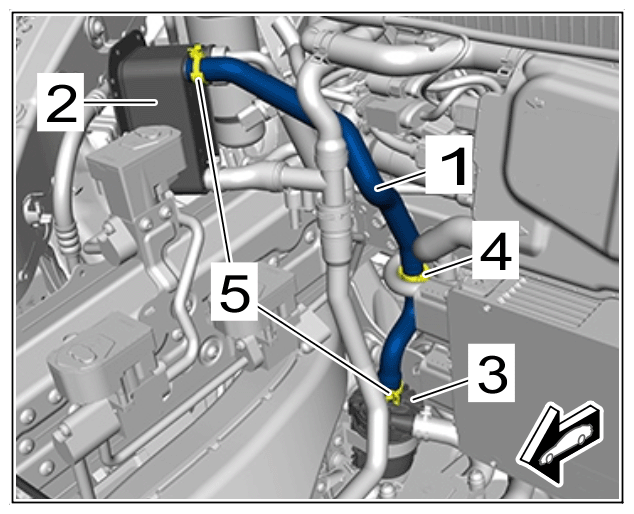

- Remove heat exchanger hose -1-
.
- 3.1 Unclip clip -4- .
- 3.2 Loosen spring band clamps -5- using > VAS 6891 - Spring Band Clamp Pliers .
- 3.3 Pull heat exchanger hose -1- from heat exchanger -2- and additional coolant pump -3- and remove.
- 3.4 Catch escaping coolant and close off line connections using suitable stoppers.
Heat exchanger hose
