Installing Heat EXCHANGER Hose

WARNING: Incorrect handling of high-voltage components
  • Electric shock
  • Short circuit
  • Fire
  • Explosion

    → Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.

    → Required qualification: High voltage technician or high voltage expert.

    → Observe national requirements and legislation for this work.

    → Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set  when working on these components.

    → Observe general warning notes for working on the high-voltage system.

> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

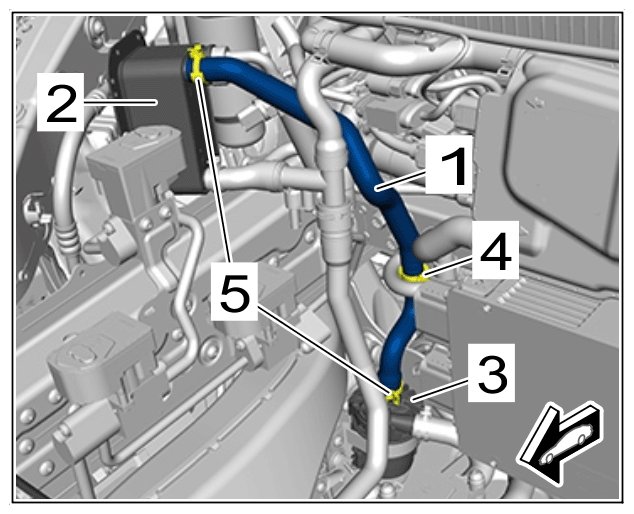

  1. Install heat exchanger hose -1-  .
    1. 1.1 Fit heat exchanger hose -1-  to heat exchanger -2-  and additional coolant pump -3-  .
    2. 1.2 Fasten spring band clamps -5-  using > VAS 6891 - Spring Band Clamp Pliers  .
    3. 1.3 Clip in clip -4-  .
    G15565405Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat exchanger hose

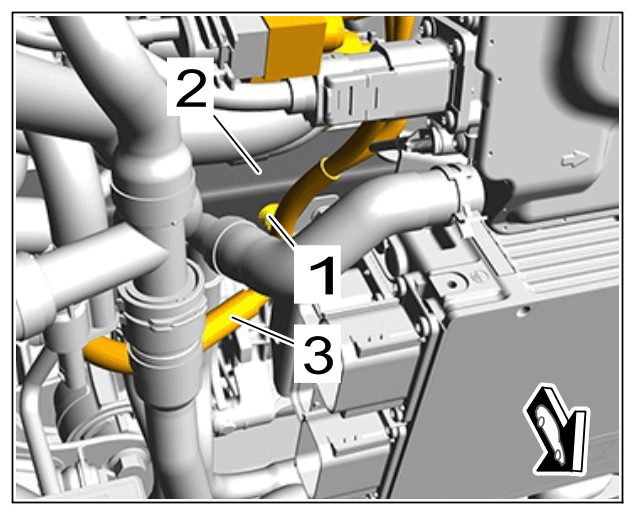

  2. Position electric line -3-  and attach clip -1-  onto cross member -2-  .
    G15565406Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clip

    Information

    Check that the high-voltage connectors are engaged fully by carrying out a visual inspection and by pulling gently on the high-voltage connectors.

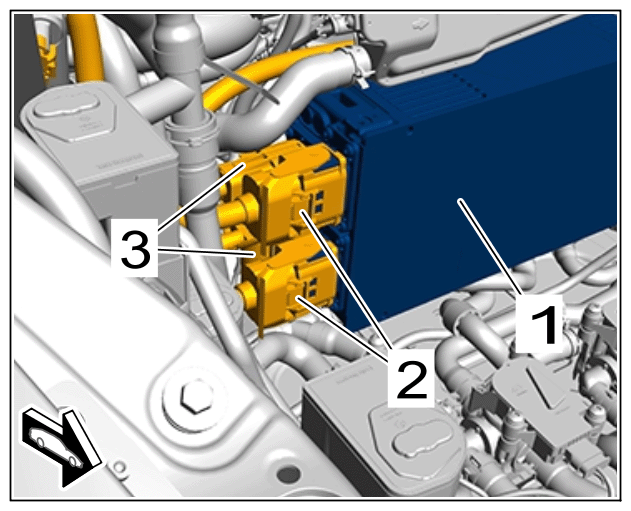

  3. Position high-voltage lines, then attach and lock electric plug connections -2 and 3-  .
    G15565407Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections
