Technical Values

Location	Description	Type	Basic value

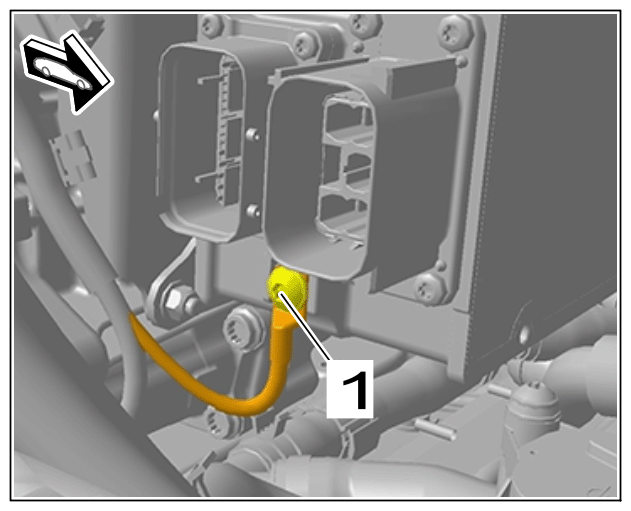

Screw securing equipotential bonding line to high-voltage charger	Item 1	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Equipotential bonding line

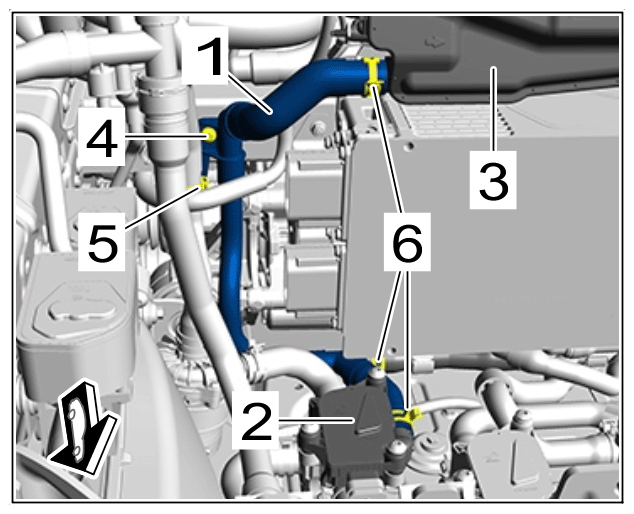

Screw securing holder for heat exchanger supply hose (section from directional-control valve to electric passenger compartment heater)	Item 4	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat exchanger supply hose
