Installing Heat EXCHANGER Supply Hose
WARNING:
Incorrect handling of high-voltage components
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.
→ Observe general warning notes for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

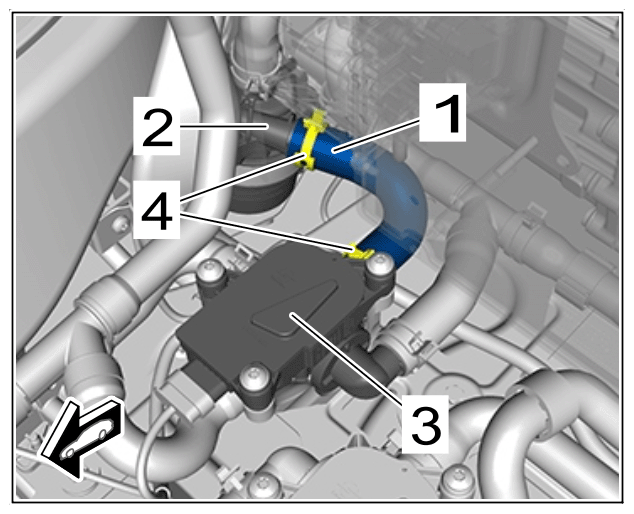

- Install heat exchanger supply hose -1-
.
- 1.1 Push heat exchanger supply hose -1- onto additional coolant pump -2- and directional-control valve -3- .
- 1.2 Fasten spring band clamps -4- using > VAS 6891 - Spring Band Clamp Pliers .
Heat exchanger supply hose
