Removing Water Temperature Sensor For Heat EXCHANGER

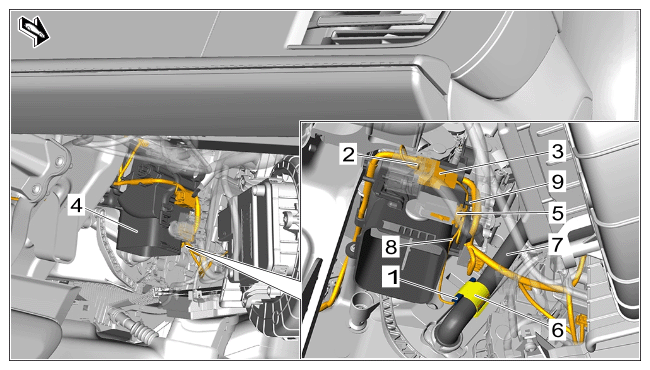

1. Remove water temperature sensor for heat exchanger -1-  .
   1. 1.1 Release and disconnect electric plug connection -2-  .
   2. 1.2 Unclip electric plug connection for water temperature sensor for heat exchanger -3-  from the footwell outlet vent bypass -4-  .
   3. 1.3 Release and disconnect electric plug connection on temperature sensor -5-  .
   4. 1.4 Unclip clip -6-  from water supply hose for heat exchanger -7-  .
   5. 1.5 Disengage electric line for water temperature sensor for heat exchanger -8-  from the guide -9-  and remove water temperature sensor for heat exchanger -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Water temperature sensor f. heat exchanger
