Valve (Eav 5)

Location	Description	Type	Basic value

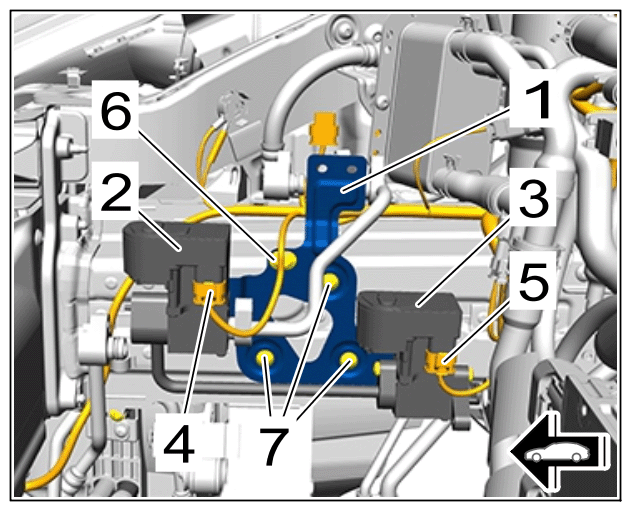

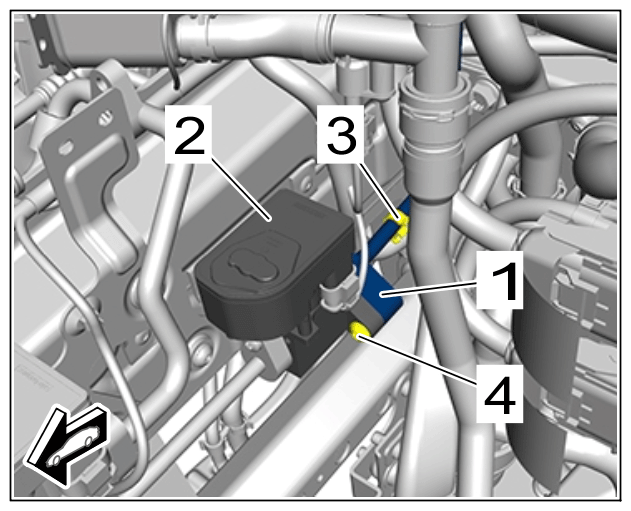

Screw securing refrigerant line to valve (EAV 5) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant line on valve (EAV 5)	Item 4	Tightening torque	8 Nm (6 ftlb.)

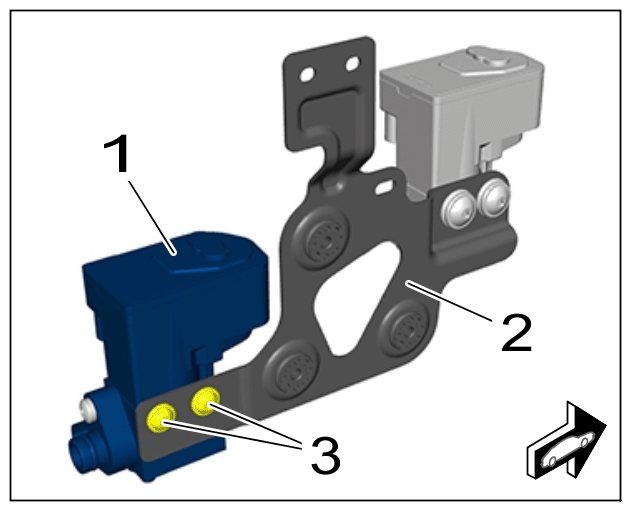

Screw securing valve (EAV 5) to holder Courtesy of PORSCHE CARS NORTH AMERICA, INC. Valve (EAV 5)	Item 3	Tightening torque	8 Nm (6 ftlb.)
Screw securing valve holder to side member Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder with valves	Item 7	Tightening torque	8 Nm (6 ftlb.)
