Valve (Eav 3)

Location	Description	Type	Basic value

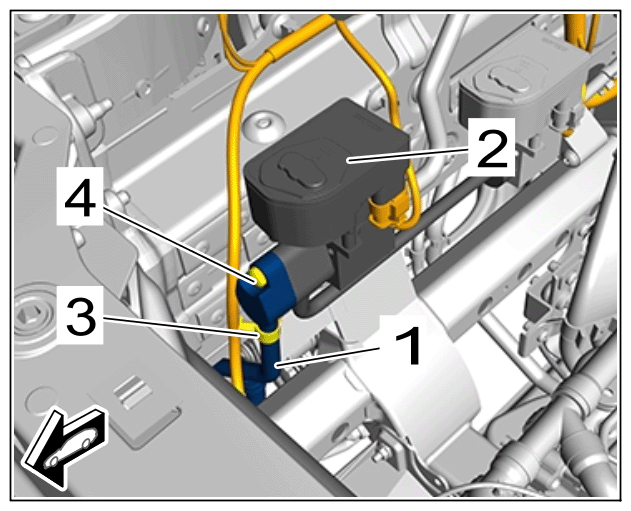

Screw securing refrigerant line to valve (EAV 3) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant line on valve (EAV 3)	Item 4	Tightening torque	8 Nm (6 ftlb.)

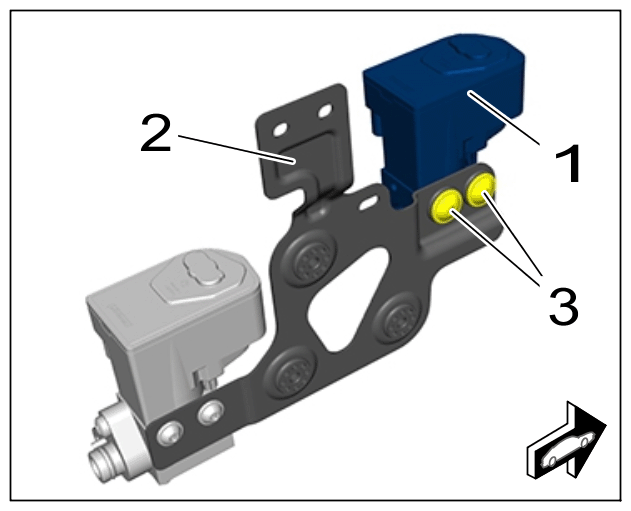

Screw securing valve (EAV 3) to holder Courtesy of PORSCHE CARS NORTH AMERICA, INC. Valve (EAV 3)	Item 3	Tightening torque	8 Nm (6 ftlb.)
Threaded pin on valve (EAV 3)		Tightening torque	6 Nm (4.5 ftlb.)

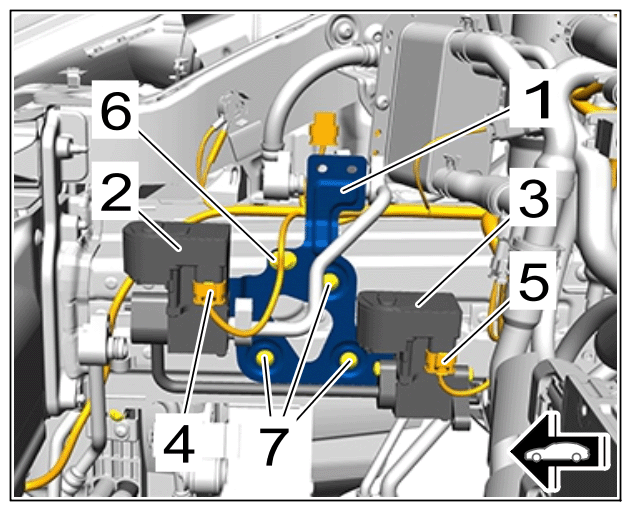

Screw securing valve holder to side member Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder with valves	Item 7	Tightening torque	8 Nm (6 ftlb.)
