Refrigerant Line From Condenser To Condenser

Location Description Type Basic value Tolerance
Screw securing refrigerant line to condenser

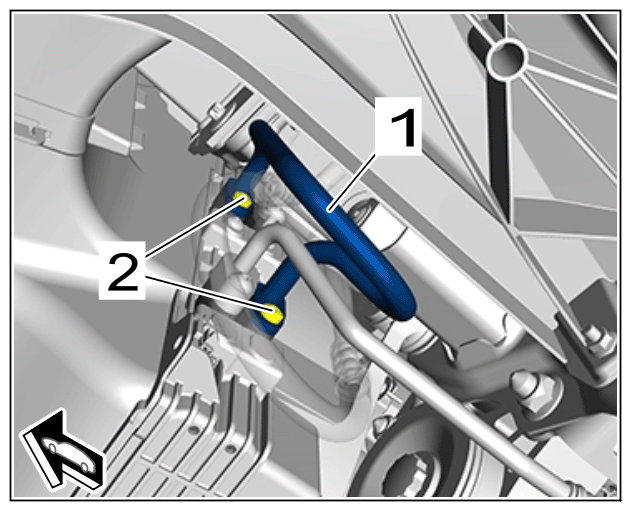

G15566078Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant line from condenser to condenser		 Item 2 Tightening torque 8 Nm (6 ftlb.)
