Expansion Valve (Exv1)

Location	Description	Type	Basic value

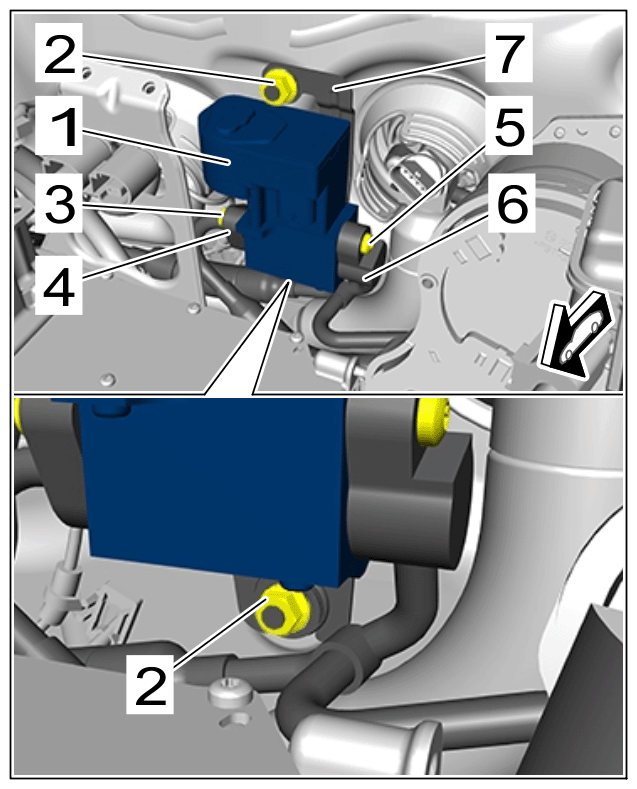

Screw securing expansion valve to holder Courtesy of PORSCHE CARS NORTH AMERICA, INC. Expansion valve		Tightening torque	8 Nm (6 ftlb.)
Screw securing refrigerant line to expansion valve (EXV1) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Expansion valve	Item 3 and 5	Tightening torque	8 Nm (6 ftlb.)
Nut securing expansion valve holder to firewall Courtesy of PORSCHE CARS NORTH AMERICA, INC. Expansion valve	Item 2	Tightening torque	8 Nm (6 ftlb.)
