Check Valve
| Location |
Description |
Type |
Basic value |
Tolerance |
Screw securing refrigerant line to check valve
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

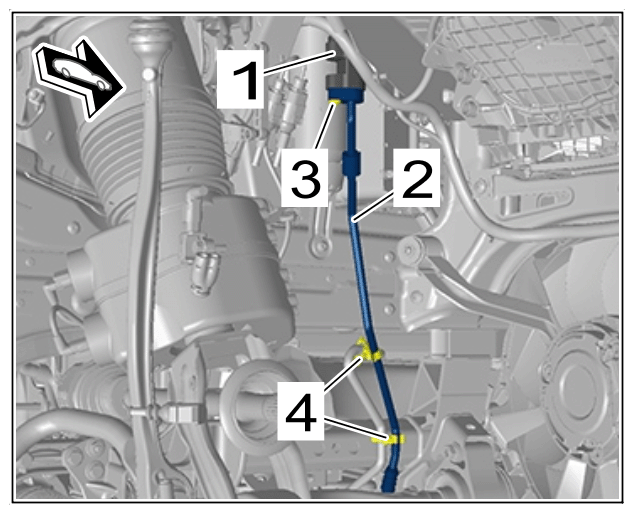

Refrigerant line at bottom of check valve |
Item 3 |
Tightening torque |
8 Nm (6 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

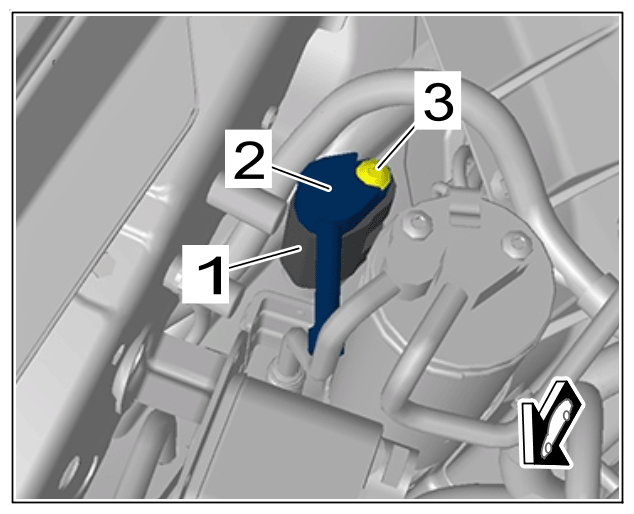

Refrigerant line at top of check valve
