Rear Air Guide

Location	Description	Type	Basic value

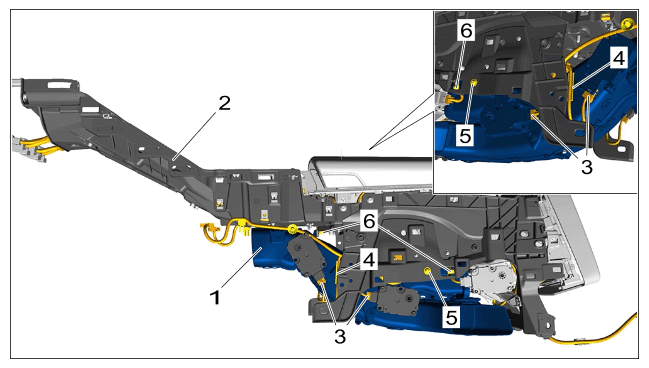

Screw securing air guide (air distributor) to centre console Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air guide for rear centre console	Pos. 5	Tightening torque	3 Nm (2.2 ftlb.)

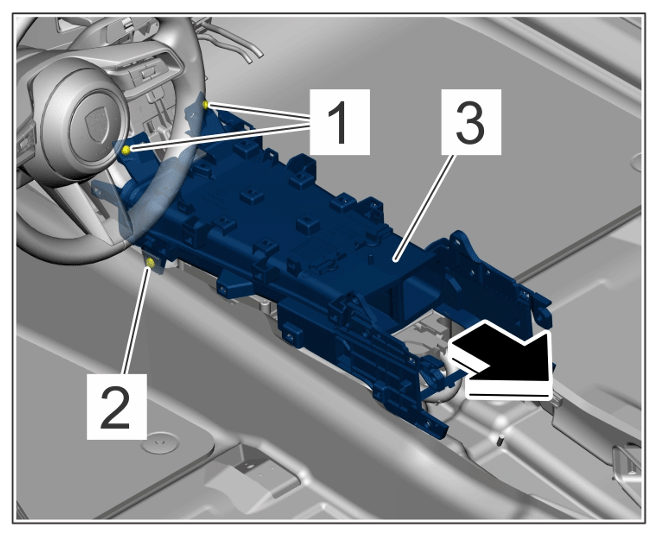

Screw securing air guide (long, under centre console) to dashboard Courtesy of PORSCHE CARS NORTH AMERICA, INC. Support	Item 2	Tightening torque	3 Nm (2.2 ftlb.)

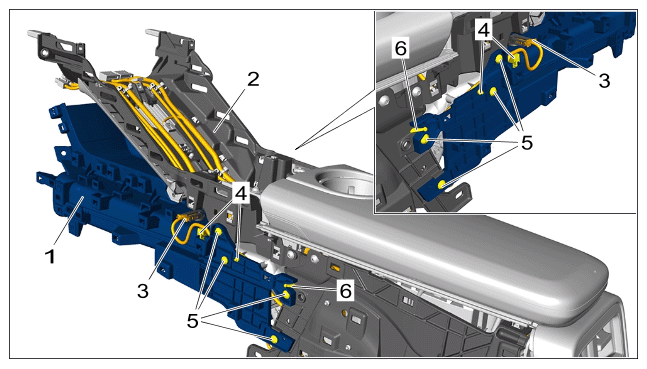

Screw securing air guide (long, under centre console) to centre console Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear air guide (on centre console), front	Item 5	Tightening torque	3 Nm (2.2 ftlb.)

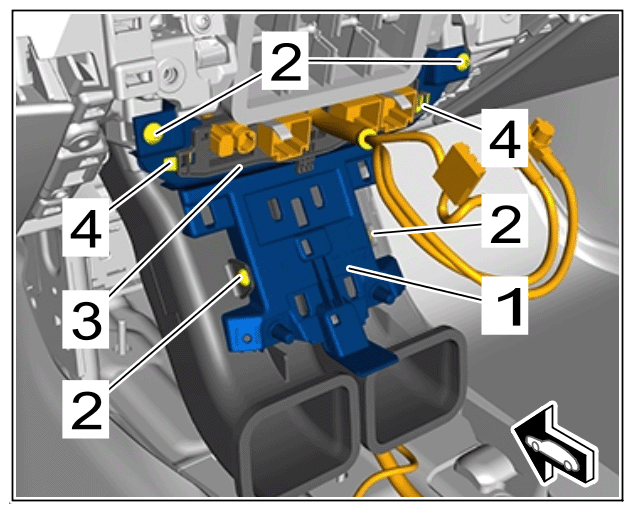

Front screw from rear air guide (on centre console) to support Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear air guide (on centre console), front	Item 1	Tightening torque	3 Nm (2.2 ftlb.)
Screw from rear air guide (on centre console), front to tunnel Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear air guide (on centre console), front	Item 2	Tightening torque	3 Nm (2.2 ftlb.)
